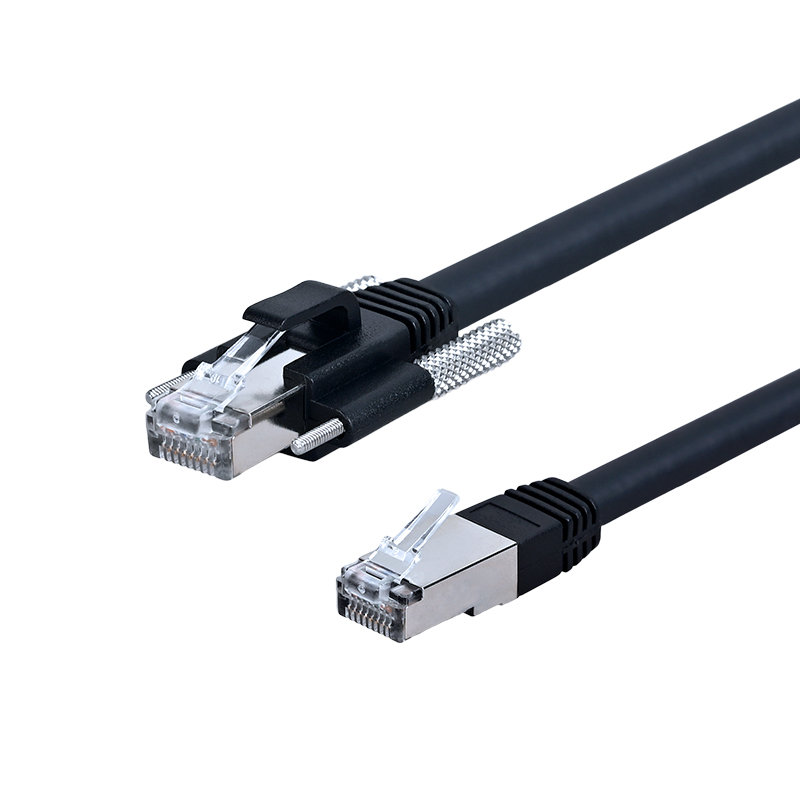

Gigabit Ethernet CAT5e
zhaolong
CABLE STRUCTURE/PERFORMANCE
Fixed type | High flexibility | |
Conductor specification | 4x2x26AWG | 4x2x26AWG |
Shielding structure | Aluminum foil and woven mesh shield | Aluminum foil and woven mesh shield |
Sheath material | PVC | PVC |
Sheath color | black | black |
Nominal outer diameter of cable | 6.0mm | 6.2mm |
Characteristic impedance | 100士15Ω | 100士15Ω |
temperature range | -40℃~80°c | -40℃~80℃(fixed) -5℃~70℃(move) |
FEATURES
High speed, support Gigabit Ethernet
With a variety of connector types, RJ45, M12 A type, straight, elbow, reliable connection, camera-end screw or M12 thread locking, effectively preventing displacement and ensuring stable data transmission
Excellent shielding design to ensure strong resistance to external electromagnetic interference
Highly flexible type, especially suitable for mobile applications, can meet 10 million drag chain applications, suitable for a wide range of industrial occasions
The cable has good oil resistance, cold resistance, flame retardancy, high waterproof and dustproof grade, M12 meets IP65&IP67 grade, and meets RoHS 2.0

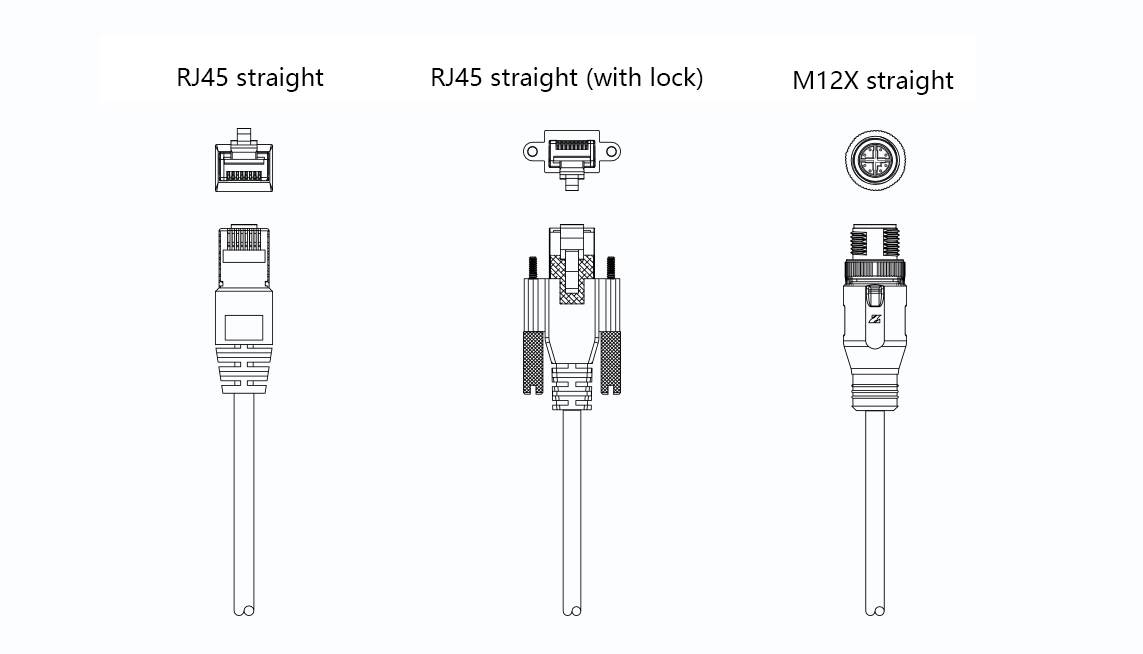

CAD DRAWING
CABLE STRUCTURE/PERFORMANCE
Fixed type | High flexibility | |
Conductor specification | 4x2x26AWG | 4x2x26AWG |
Shielding structure | Aluminum foil and woven mesh shield | Aluminum foil and woven mesh shield |
Sheath material | PVC | PVC |
Sheath color | black | black |
Nominal outer diameter of cable | 6.0mm | 6.2mm |
Characteristic impedance | 100士15Ω | 100士15Ω |
temperature range | -40℃~80°c | -40℃~80℃(fixed) -5℃~70℃(move) |
FEATURES
High speed, support Gigabit Ethernet
With a variety of connector types, RJ45, M12 A type, straight, elbow, reliable connection, camera-end screw or M12 thread locking, effectively preventing displacement and ensuring stable data transmission
Excellent shielding design to ensure strong resistance to external electromagnetic interference
Highly flexible type, especially suitable for mobile applications, can meet 10 million drag chain applications, suitable for a wide range of industrial occasions
The cable has good oil resistance, cold resistance, flame retardancy, high waterproof and dustproof grade, M12 meets IP65&IP67 grade, and meets RoHS 2.0
CAD DRAWING
