CABLE STRUCTURE/PERFORMANCE
| Fixed type | High flexibility |
| Conductor specification | 4x2x26AWG | 4x2x26AWG
|
| Shielding structure | Aluminum foil and woven mesh shield | Aluminum foil and woven mesh shield |
| Sheath material | PVC
| PVC
|
| Sheath color | black | black |
| Nominal outer diameter of cable | 6.5mm
| 7mm
|
| Characteristic impedance | 100士15Ω
| 100士15Ω
|
| temperature range | -40℃~80°c | -40℃~80℃(fixed) -5℃~70℃(move) |
FEATURES
Ultra-high speed, support 10 Gigabit Ethernet

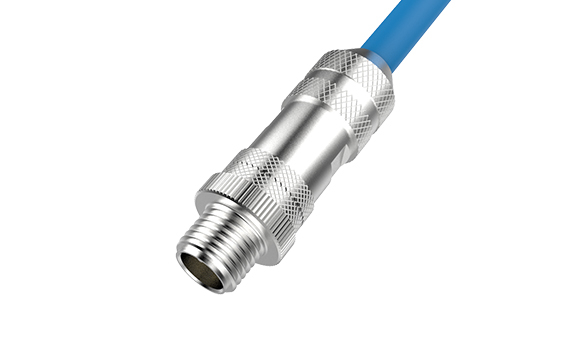

It has a variety of connector types, RJ45, M12 X type, IX, reliable connection, camera end screw or M12 thread locking, effectively preventing displacement and ensuring stable data transmission
Excellent shielding design, ensuring strong resistance to external electromagnetic interference, high flexibility, especially suitable for mobile applications, can meet 10 million times of drag chain and torsion applications, and suitable for a wide range of industrial occasions
The cable has good oil resistance, cold resistance, flame retardancy, high waterproof and dustproof grade, M12 end IP65&67 waterproof and dustproof, RoHS 2.0 compliant

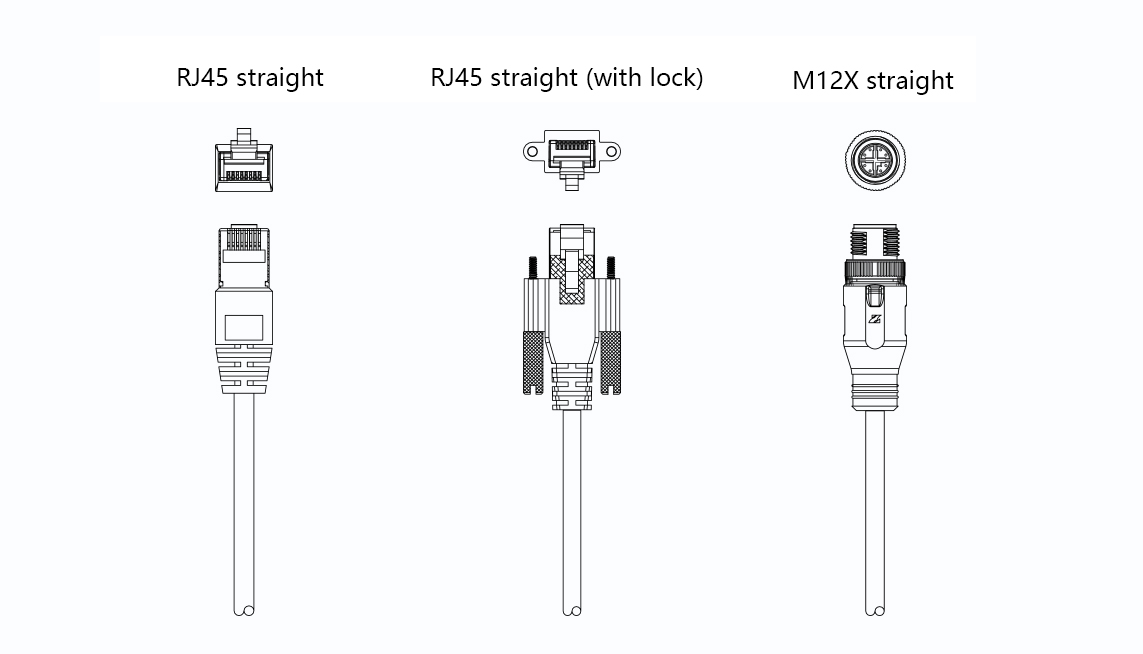

CAD DRAWING
CABLE STRUCTURE/PERFORMANCE
| Fixed type | High flexibility |
| Conductor specification | 4x2x26AWG | 4x2x26AWG
|
| Shielding structure | Aluminum foil and woven mesh shield | Aluminum foil and woven mesh shield |
| Sheath material | PVC
| PVC
|
| Sheath color | black | black |
| Nominal outer diameter of cable | 6.5mm
| 7mm
|
| Characteristic impedance | 100士15Ω
| 100士15Ω
|
| temperature range | -40℃~80°c | -40℃~80℃(fixed) -5℃~70℃(move) |
FEATURES
Ultra-high speed, support 10 Gigabit Ethernet
It has a variety of connector types, RJ45, M12 X type, IX, reliable connection, camera end screw or M12 thread locking, effectively preventing displacement and ensuring stable data transmission
Excellent shielding design, ensuring strong resistance to external electromagnetic interference, high flexibility, especially suitable for mobile applications, can meet 10 million times of drag chain and torsion applications, and suitable for a wide range of industrial occasions
The cable has good oil resistance, cold resistance, flame retardancy, high waterproof and dustproof grade, M12 end IP65&67 waterproof and dustproof, RoHS 2.0 compliant
CAD DRAWING
