MCIO 4X/38pos 85 Ohm STR w/Pull tab

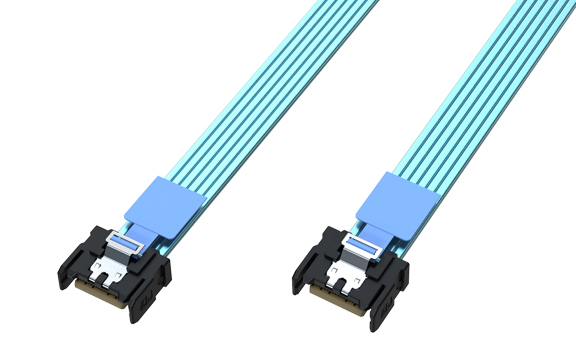

Product Description: MCIO 4X/38pos 85 Ohm Straight with Pull tab
Series: SFF-TA-1016 MCIO
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Pull tab : Yes
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
Availability:
Quantity:

APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios

FEATURES AND BENEFITS
1. Pitch 0.6mm connector design, plug with pull tab
2. 1.57mm PCB card thickness compatible with PCIe riser card
4. Supports 85 ohm impedance applications
5. 34-30AWG cables are optional
6. Straight, right angle, side exit and customization cable plug are optional
7. Supports signaling rates up to PCIe Gen5 and PCIe Gen6
8. Compliance to SFF(SFF-TA-1016)

MECHANICAL PERFORMANCE
1. Latched Mating Force: 25N Maximum
2. Latched Retention:  50N Minimum
3. Durability : 200 Cycles

ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins

SIGNAL INTEGRITY
1. PCIe Gen4 and PCIe Gen5
2.OCP Standard

PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
