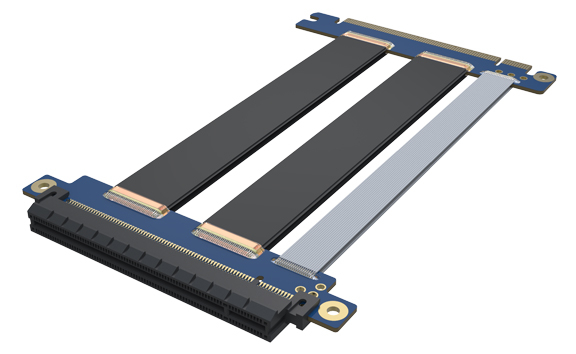

PCIe 4.0 16x Extend Cable(FFC Type)
zhaolong
APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3. PCIe signal extend or jump
4. Gaming PC
5. Industry PC (IPC)
6. GPU Card
FEATURES AND BENEFITS
1. Customer system design more flexible
2. Support PCIe 4.0 in long distance
3. Supports 85 ohm impedance applications
4. Supports 34-30AWG .
5. Provide Laminate and FFC type .
MECHANICAL PERFORMANCE
1. Mating force: 21N(4X) / 31N (8X)maximum
2. Unmating force: 18N(4X) / 24N (8X)maximum
3. Rated durability cycles: 250 cycles minimum
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. PCIe 4.0 16.0 GT/S
2. PCIe 3.0 8.0 GT/S
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3. PCIe signal extend or jump
4. Gaming PC
5. Industry PC (IPC)
6. GPU Card
FEATURES AND BENEFITS
1. Customer system design more flexible
2. Support PCIe 4.0 in long distance
3. Supports 85 ohm impedance applications
4. Supports 34-30AWG .
5. Provide Laminate and FFC type .
MECHANICAL PERFORMANCE
1. Mating force: 21N(4X) / 31N (8X)maximum
2. Unmating force: 18N(4X) / 24N (8X)maximum
3. Rated durability cycles: 250 cycles minimum
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. PCIe 4.0 16.0 GT/S
2. PCIe 3.0 8.0 GT/S
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
