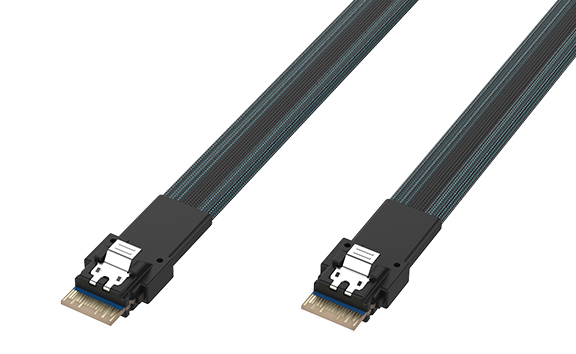

SlimSAS 4x STR
zhaolong
APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
FEATURES AND BENEFITS
1. Complince with SFF-8654 standard
2. Small size design: pitch 0.6mm
3. 4x(38pos)and 8x(74pos) connector type, and support straight, right angle and side exit
4. Supports 100 & 85 ohm impedance applications
5. 30-34AWG are available for both discrete and ribbon cable
6. Pull tab is optional
7. Optional ASM ( Anti Skew Mated) funtion
MECHANICAL PERFORMANCE
1. Mating force: 21N(4X) / 31N (8X)maximum
2. Unmating force: 18N(4X) / 24N (8X)maximum
3. Rated durability cycles: 250 cycles minimum
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. PCIe 4.0 16GT/S
2. SAS 4.0 24Gbps
3. Support to Next Genteration PCIe 5.0
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
FEATURES AND BENEFITS
1. Complince with SFF-8654 standard
2. Small size design: pitch 0.6mm
3. 4x(38pos)and 8x(74pos) connector type, and support straight, right angle and side exit
4. Supports 100 & 85 ohm impedance applications
5. 30-34AWG are available for both discrete and ribbon cable
6. Pull tab is optional
7. Optional ASM ( Anti Skew Mated) funtion
MECHANICAL PERFORMANCE
1. Mating force: 21N(4X) / 31N (8X)maximum
2. Unmating force: 18N(4X) / 24N (8X)maximum
3. Rated durability cycles: 250 cycles minimum
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. PCIe 4.0 16GT/S
2. SAS 4.0 24Gbps
3. Support to Next Genteration PCIe 5.0
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
