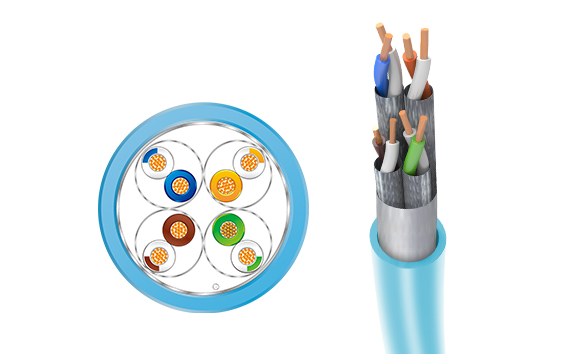

CAT6A

The use of high-quality oxygen-free copper material to ensure excellent tensile properties and electrical resistance properties.
Optimized design of high-speed cable pitch technology and skin foam insulation production process, greatly
Improves the margin of transmission performance indicators such as crosstalk and return loss, and obtains higher
Transmission bandwidth
Products fully comply with REACH and RoHS requirements
Availability:
Quantity:
  • zhaolong

Reference Standard

UL444, UL1581, UL1666, IEC60332-1, IEC60332-3-24, EN50399


Test Standard

ISO / IEC11801, ANSI / TIA-568-C.2, IEC-61156-5


Physical Parameters

Conductor:

solid bare copper

Insulation materials:

high-density polyethylene (unshielded), skin-foamed skin polyethylene (shielded)

Insulation diameter:

1.10 ± 0.05mm (unshielded), 1.33 ± 0.05mm (shielded)

Shield:

aluminum foil (shield)

Sheath diameter:

7.1±0.5mm (unshielded), 7.3±0.5mm (U / FTP shielded), 7.5±0.5mm (F / FTP shielded)

Sheath material:

PVC or LSZH low smoke halogen-free (according to different jackets), in line with RoHS and REACH   requirements

Working temperature:

-30 ℃ to 50 ℃ (LSZH), -20 ℃ to 50 ℃ (PVC)



Mechanical Parameters

Tensile strength before aging:

≥13.5Mpa (PVC), ≥10.0Mpa (LSZH low smoke halogen-free) Elongation before aging: ≥150%   (PVC), ≥125% (LSZH low smoke halogen-free) Aging time: 100 ℃ × 24 hours × 7 day

Tensile strength after aging:

 ≥12.5Mpa (PVC), ≥8Mpa (LSZH low smoke halogen-free) Elongation after aging: ≥125% (PVC),  ≥100% (LSZH low smoke halogen-free) Cold bending (-20 ± 2 ℃ × 4 hours ): 8 times the outer   diameter of the cable without cracking


Electrical Parameters

Transmission delay difference:

≤45ns / 100m

Transmission speed:

69% (unshielded), 74% (shielded)

Capacitance:

Maximum 5.6nf / 100m

DC resistance:

maximum 9.38Ω / 100m

DC resistance unbalance:

maximum 5% (unshielded)

Unbalanced capacitance to ground:

maximum 330pf / 100m
