ROBOTIC FD 930 CP
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -50°C~80°C
Mobile Application: -40°C~80°C
—Test Voltage
core/core:2000V/min(AC)
core/shield:2000V/min(AC)
—Insulation Resistance(20°C)
≥1000MΩ.km
—Rated Voltage
UL/CSA 300V
IEC/VDE≤0.5mm2:300/300V
>0.5mm2:300/500V
—Minimum Bending Radius
Fixed Application: 3D(D=cablediameter)
Mobile Application: 5D(D=cablediameter)
—Technical Certification
UL20936
—Application of drag chain
≥10 million times

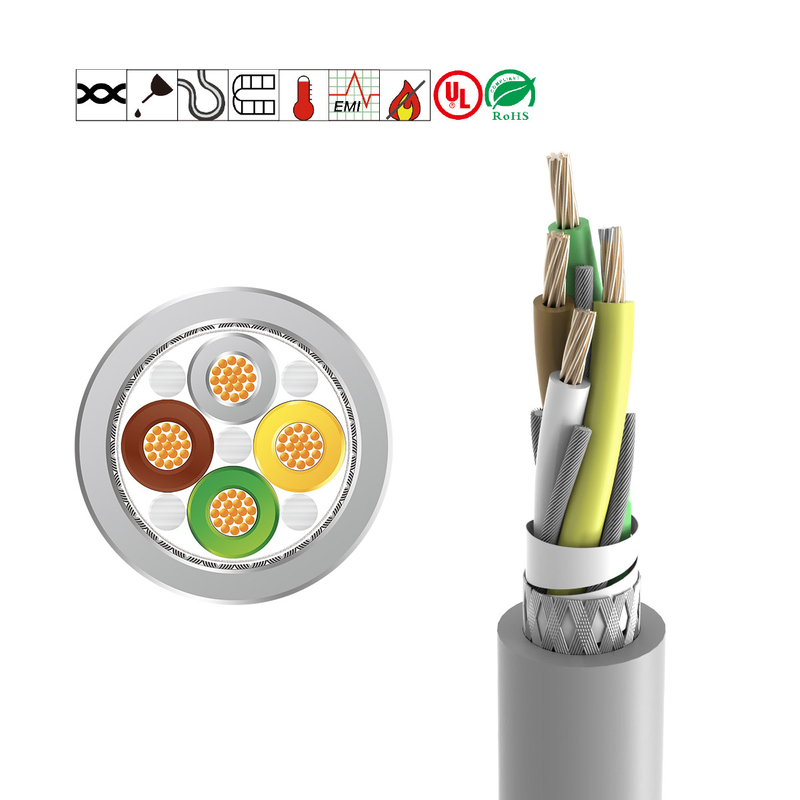

CABLE CONSTRUCTION
Conductor:
Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
TPEE
Insulation Color:
Accordingto DIN 47100
Shielded:
Tinned copper spiral shield
Jacket:
PUR
Color:
Grey(similar to RAL 7001)
FEATURES
Halogen free, flame resistance according to FT2
Good property of flexibility
Extreme small bending radius
Excellent resistance to external EMI
Extreme oil resistance, abrasion resistance and anti-hydrolysis
Extremely resistant to bending and torsion
Resistant to low and high temperature
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -50°C~80°C
Mobile Application: -40°C~80°C
—Test Voltage
core/core:2000V/min(AC)
core/shield:2000V/min(AC)
—Insulation Resistance(20°C)
≥1000MΩ.km
—Rated Voltage
UL/CSA 300V
IEC/VDE≤0.5mm2:300/300V
>0.5mm2:300/500V
—Minimum Bending Radius
Fixed Application: 3D(D=cablediameter)
Mobile Application: 5D(D=cablediameter)
—Technical Certification
UL20936
—Application of drag chain
≥10 million times
CABLE CONSTRUCTION
Conductor:
Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
TPEE
Insulation Color:
Accordingto DIN 47100
Shielded:
Tinned copper spiral shield
Jacket:
PUR
Color:
Grey(similar to RAL 7001)
FEATURES
Halogen free, flame resistance according to FT2
Good property of flexibility
Extreme small bending radius
Excellent resistance to external EMI
Extreme oil resistance, abrasion resistance and anti-hydrolysis
Extremely resistant to bending and torsion
Resistant to low and high temperature
