LONGFLEX® ROBOTIC FD 930 CP-TP

Applications
This cable is designed for movement application with torsion.It is very suitable for industrial robots and manipulators. Extreme performance of resistant to oil. It can be used in low and high temperature whether indoors or outdoors.
Quantity:
  • ROBOTIC FD 930 CP-TP
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -50°C~80°C

    Mobile Application: -40°C~80°C

—Test Voltage

    core/core:2000V/min(AC)

    core/shield:2000V/min(AC)

—Insulation Resistance(20°C) ≥100MΩ.km

—Rated Voltage

    UL/CSA 300V

    IEC/VDE≤0.5mm2:300/300V

                 >0.5mm2:300/500V

—Minimum Bending Radius

    Fixed Application: 3D(D=cablediameter)

    Mobile Application: 5D(D=cablediameter)

—Technical Certification

    UL20936

—Application of drag chain

    ≥10 million times

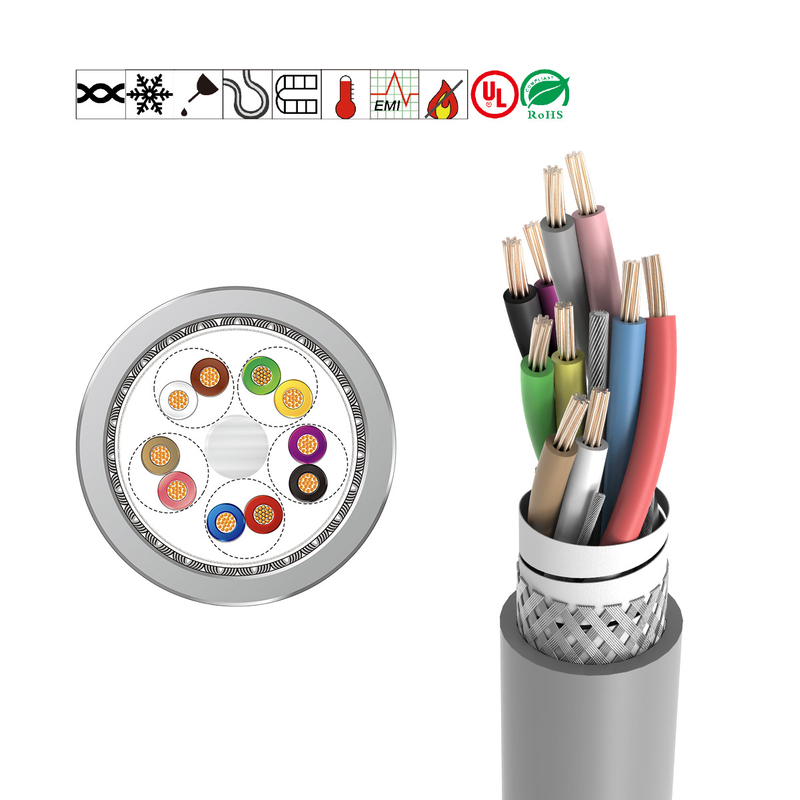

CABLE CONSTRUCTION

Conductor:

Ultra-fined stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

TPEE

Insulation Color:

According to DIN 47100

Shielded:

Tinned copper spiral shield

Jacket:

PUR

Color:

Grey(similar to RAL 7001)


FEATURES

Halogen free, flame resistance according to FT2

Good property of flexibility

Good performance of resistant toexternal EMI

Extreme oil resistance, abrasion resistance and anti-hydrolysis

Extremely resistant to bending and torsion

Resistant to low andhigh temperature
