LONGFLEX® ROBOTIC FD 938 CY-TP

Applications
This cable is designed for movement application with torsion. It is very suitable for industrial robots and manipulators.Good performance of resistant to oil. It can be used in high temperature.
Quantity:
  • ROBOTIC FD 938 CY-TP
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~105°C

    Mobile Application: -5°C~105°C

—Test Voltage

    core/core: 2000V/min(AC)

    core/shield: 2000V/min(AC)

—Insulation Resistance(20°C)

    ≥100MΩ.km

—Rated Voltage

    UL/CSA 300V

    IEC/VDE≤0.5mm2300/300V

                  >0.5mm2:300/500V

—Minimum Bending Radius

    Fixed Application: 3D(D=cablediameter)

    Mobile Application: 5D(D=cablediameter)

—Technical Certification

    UL2517

—Application of drag chain

    ≥10 million times

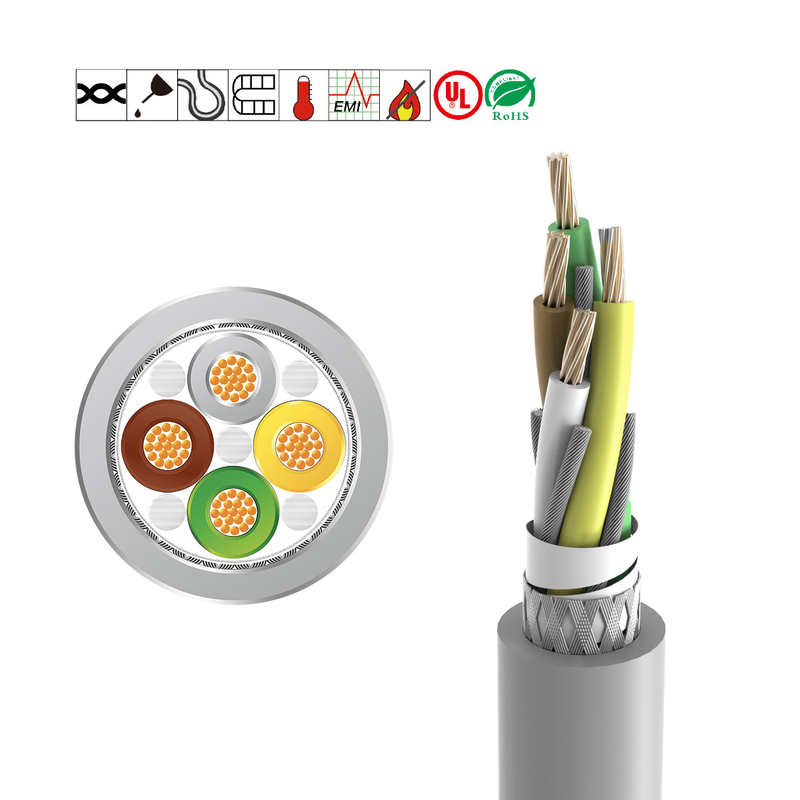

CABLE CONSTRUCTION

Conductor:

Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

TPEE

Insulation Color:

According to DIN 47100

Shielded:

Tinned copper spiral shield

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Resistant to low and high temperature

Extremely resistant to bending and torsion

Extreme oil resistance,abrasion resistanc eand anti-hydrolysis

Excellent resistance to external EMI

Small bending radius  and good flexibility

Flame resistance according to VW-1/FT1
