LONGFLEX® ROBOTIC HYBRID MULTIBUS

Applications
Extremely suitable for the system of robots. Power wire and data wires are combined with in one cable. They are used in dress package of robots. Saving enormous space and time for customers.
Availability:
Quantity:
  • ROBOTIC HYBRID MULTIBUS

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    FixedApplication: -40℃~80℃

    Mobile Application: -30℃~80℃

—Test Voltage

    core/core:1500V/min(AC)

    core/shield:1000V/min(AC)

—Characteristic Resistance(@1MHz)

    Interbus:100±15Ω

    Profibus:150±15Ω

    Devicenet:120±15Ω

—Insulation Resistance(20°C)

    ≥100MΩ.km

—Rated Voltage

    UL/CSA30V

—Minimum Bending Radius

    FixedApplication: 5D(D=cable diameter)

    MobileApplication: 12D(D=cable diameter)

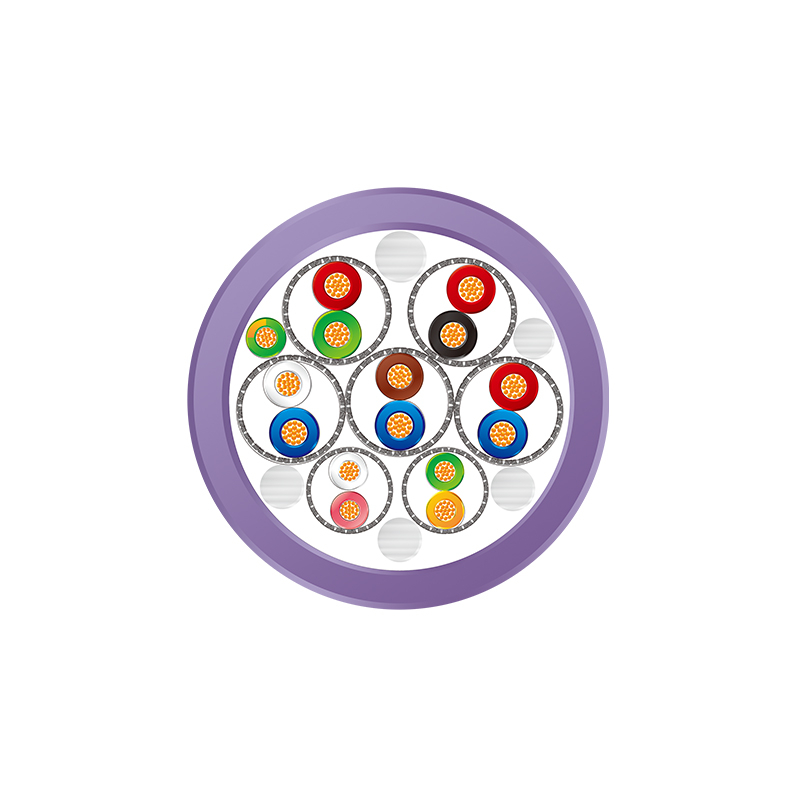

CABLE CONSTRUCTION

Conductor:

Ultra-fine stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

    Profibus(foamPE)

    Devicenet&Interbus(PE)

    Power core:TPE

Shielded:

Data pairs tinned copper braiding

Jacket:

PUR

Color:

Purple(similar to RAL 4001)


FEATURES

Halogen free, flame resistance  according to IEC60332-1

Good property of flexibility, small bending redius

Excellent resistance to external EMI

Extreme oil resistance, abrasion resistance and anti-hydrolysis

Extremely resistant to bending and torsion
