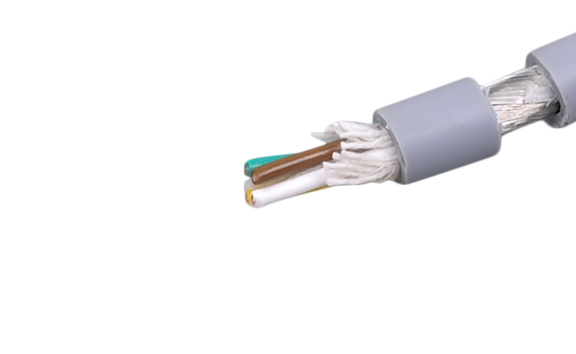

ROBOTIC FD 938 CY
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~105°C
Mobile Application: -5°C~105°C
—Test Voltage
core/core: 2000V/min(AC)
core/shield: 2000V/min(AC)
—Insulation Resistance(20°C)
≥100MΩ.km
—Rated Voltage
UL/CSA300V
IEC/VDE≤0.5mm2:300/300V
>0.5mm2:300/500V
—Minimum Bending Radius
Fixed Application: 3D(D=cablediameter)
MobileApplication: 5D(D=cablediameter)
—Technical Certification
UL2517
—Application of drag chain
≥10 million times
CABLE CONSTRUCTION
Conductor:
Ultra-fined stranded bare copper, according to IEC 60228/VDE 0295 class6
Insulation:
TPEE
Insulation Color:
According to DIN 47100
Shielded:
Tinned copper spiral shield
Jacket:
PVC
Color:
Grey(similar to RAL 7001)
FEATURES
Flame resistance according to VW-1/FT1
Good property of flexibility, small bending radius
Excellent resistance to external EMI
Extreme oil resistance, abrasion resistance and anti-hydrolysis
Extremely resistant to bending and torsion
Resistant to low and high temperature
