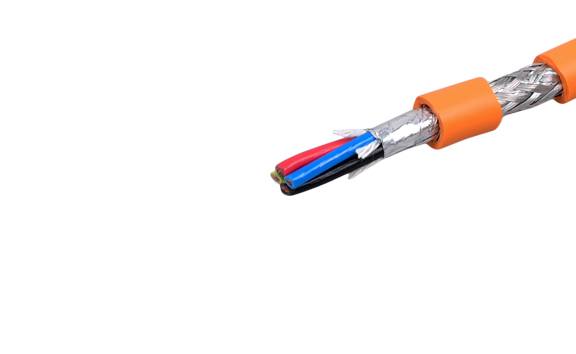

LONGFLEX® SERVO 310 CY

Applications
Can be used as connecting cables between motor and converter, or controller and motor of CNC machine tools, robots, and other automation equipment Intended for places of serious electrical interference. It is suitable for occasional movement.
Quantity:
  • SERVO 310 CY
  • zhaolong

TECHNICAL DATA

—Temperature Range

    Fixed application: -40°C~80°C

    Occasional movement: -5°C~70°C

—Test voltage

    Power Line:

      core/core: 4000V/min(AC)

      core/shield: 2000V/min(AC)

    Control Wire:

      core/core: 1500V/min(AC)

      core/shield: 750V/min(AC)

—Insulation resistance (20°C)

    ≥20MΩ.km

—Rated voltage

    Power Line: 600/1000V

    Control Line: 300/500V

—Minimum Bending Radius

    Fixed Application: 6D(D=cable diameter)

    Occasional Movement: 20D(D=cable diameter)


CABLE CONSTRUCTION

Conductor:

Fine standed bare copper conductor, in line with IEC 60228/VDE 0295 class 5

Insulation:

PVC

Insulation color:

According to DIN VDE 0293,black cores with white numbering, green-yellow conductor

Shield:

Control pair AL/Mylar screen and tinned copper braiding, tinned copper overall braiding

Jacket:

PVC

Color:

Grey (similar to RAL 7001)


FEATURES

Flame retardant satisfacts IEC60332-1

Good flexibility and small bending radius

Excellent resistance to external electromagnetic interference

Economical solution
