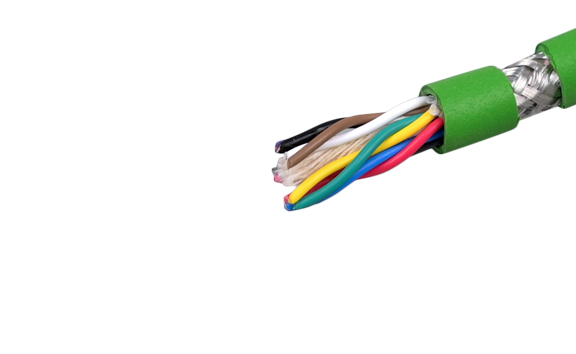

SERVO FD 340 CP
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -20°C~60°C
Mobile Application: -50°C~80°C
—Test Voltage
500V/min(AC)
—Insulation Resistance (20°C)
≥10MΩ.km
—Rated Voltage
30V
Minimum Bending Radius
Fixed Application: 4D(D=Cable diameter)
Mobile Application: 7.5D(D=Cable diameter)
—Technical certification:
UL2464
—Application of Drag Chain
5~10 million times

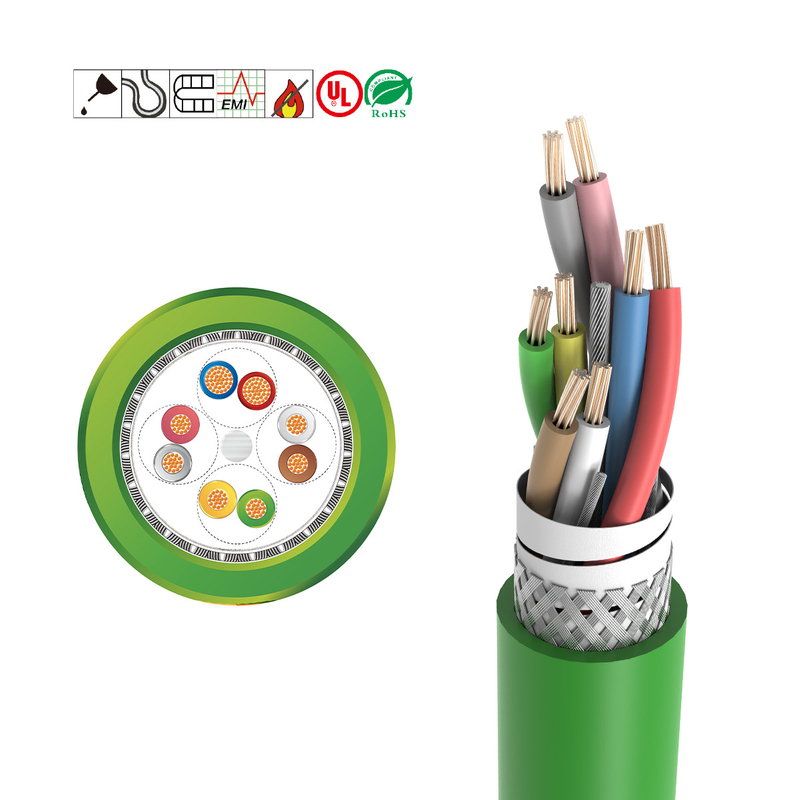

CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, in line with IEC60228/VDE02956 class 6
Insulation:
PP
Shield:
Tinned Copper Braiding
Jacket:
PUR
Color:
Green (similar to RAL 6018)
FEATURES
Halogen free, flame retardance according to IEC60332-1
Good flexibility
Small bending radius
Good oil resistance
Excellent resistance to external electromagnetic interference
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -20°C~60°C
Mobile Application: -50°C~80°C
—Test Voltage
500V/min(AC)
—Insulation Resistance (20°C)
≥10MΩ.km
—Rated Voltage
30V
Minimum Bending Radius
Fixed Application: 4D(D=Cable diameter)
Mobile Application: 7.5D(D=Cable diameter)
—Technical certification:
UL2464
—Application of Drag Chain
5~10 million times
CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, in line with IEC60228/VDE02956 class 6
Insulation:
PP
Shield:
Tinned Copper Braiding
Jacket:
PUR
Color:
Green (similar to RAL 6018)
FEATURES
Halogen free, flame retardance according to IEC60332-1
Good flexibility
Small bending radius
Good oil resistance
Excellent resistance to external electromagnetic interference
