SERVO FD 320 CY
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
coree/core: 4000V/min(AC)
core/shield: 4000V/min(AC)
— Insulation Resistance (20°C)
≥20MΩ.km
—Rated Voltage
600/1000V
—Minimum Bending Radius
Fixed Application: 4D(D=Cable diameter)
Mobile Application: 7.5D (D=Cable diameter)
—Application of Drag Chain
3~8 million times

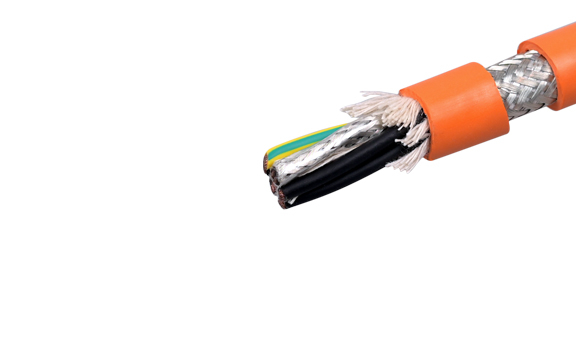

CABLE CONSTRUCTION
Conductor:
Ultra-fine stranded bare copper, in line with IEC 60228/VDE 0295 class 6
Insulation:
PP
Insulation Color:
According to DIN VDE 0293, black cores with white numbering, green-yellow conductor
Shield:
Tinned copper overall braiding
Jacket:
PVC
Color:
Orange (similar to RAL 2003)
FEATURES
Flame retardance satisfacts IEC60332-1
Good flexibility
Small bending radius
Excellent resistance to external electromagnetic interference
Good oil resistance
Low capacitance
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
coree/core: 4000V/min(AC)
core/shield: 4000V/min(AC)
— Insulation Resistance (20°C)
≥20MΩ.km
—Rated Voltage
600/1000V
—Minimum Bending Radius
Fixed Application: 4D(D=Cable diameter)
Mobile Application: 7.5D (D=Cable diameter)
—Application of Drag Chain
3~8 million times
CABLE CONSTRUCTION
Conductor:
Ultra-fine stranded bare copper, in line with IEC 60228/VDE 0295 class 6
Insulation:
PP
Insulation Color:
According to DIN VDE 0293, black cores with white numbering, green-yellow conductor
Shield:
Tinned copper overall braiding
Jacket:
PVC
Color:
Orange (similar to RAL 2003)
FEATURES
Flame retardance satisfacts IEC60332-1
Good flexibility
Small bending radius
Excellent resistance to external electromagnetic interference
Good oil resistance
Low capacitance
