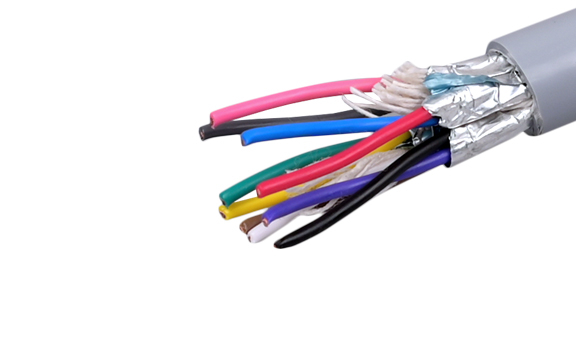

LONGTRONIC® LF-DATA Li2YCY PIMF

Applications
Can be used as data transmission and control cables in electronics of computer systems, electronic control equipment, machine work,measuring instrument, assembly line,etc. Intended for limited flexible use, and suitable for fixed application interiors. Suitable for the place of extremely high electrical interference.
Quantity:
  • LF-DATA Li2YCY PIMF
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40℃~80℃

    Occasional Movement :  -5℃~70℃

—Test Voltage

    core/core 2000V/min (AC)

    core/Shield 1000V/min (AC)

—Capacitance

    core/core ≤70nF/km(0.22mm²,0.34mm²)

                     ≤75nF/km(0.5mm²)

                     ≤85nF/km(1.0mm²)

—Insulation Resistance( 20℃)

    ≥5GΩ.km

—Rated Voltage

    250V

—Minimum Bending Radius

    Fixed Application: 10D (D=cable diameter)

    Occasional movement : 20D (D=cable diameter)

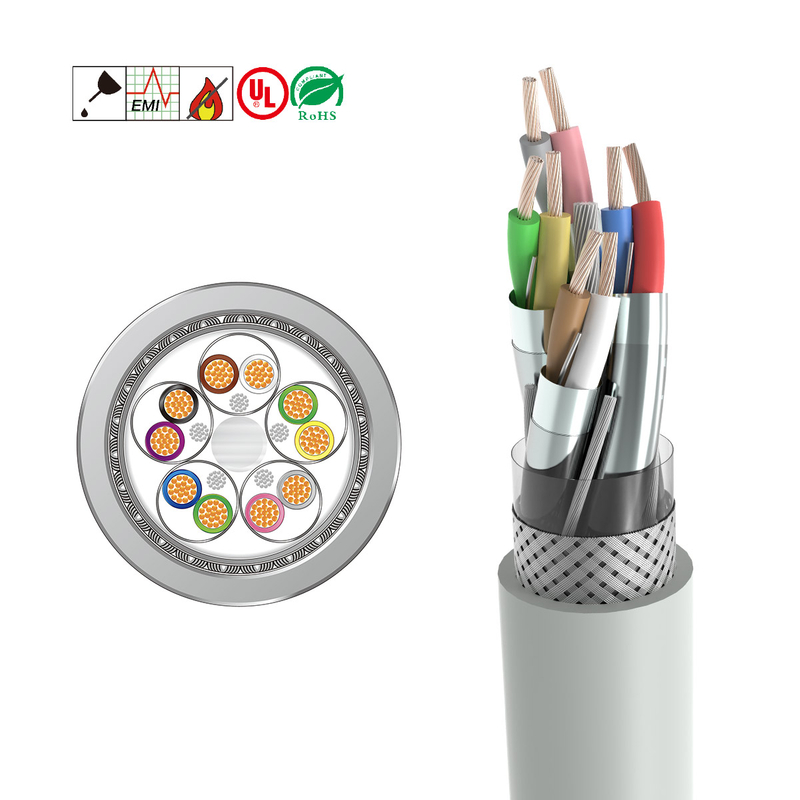

CABLE CONSTRUCTION

Conductor:

7 wires stranded bare copper, according to IEC 60228/VDE 0295

Insulation:

PE

Insulation Color:

According to DIN 47100

Individual shield:

AL/Mylar wrapped for each pair

Overall shield:

Tinned copper braiding

Jacket:

PVC

Color:

Grey(similar to RAL 7035)


FEATURES

Flame resistance according to IEC60332-1

Conditional oil resistance

Individual shield and tinned copper overall  braiding

Good performance of resistant to external EMI

Low capacitance crosstalk is good
