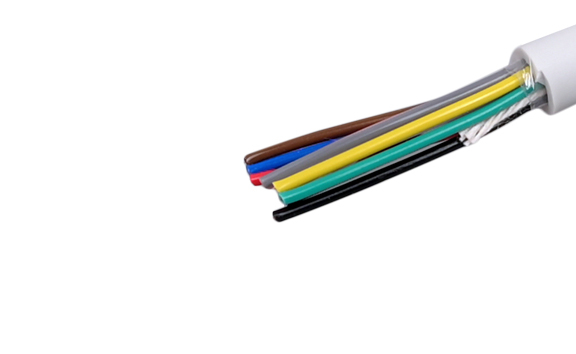

LONGTRONIC® LF-DATA Li2YCY-TP

Applications

Can be used as data transmission and control cables in electronics of computer systems, electronic control equipment, machine work,measuring instrument, assembly line,etc. Suitable for the place of high electrical interference.
Quantity:
  • LF-DATA Li2YCY-TP
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application : -40℃~80℃

    Occasional Movement : -5℃~70℃

—Test Voltage

    core/core 2000V/min (AC)

    core/shield 1000V/min (AC)

—Capacitance

    core/core ≤60nF/km

—Insulation Resistance( 20℃)

    ≥5GΩ.km

—Rated Voltage

    250V

—Minimum Bending Radius

    Fixed Application : 6D (D=cable diameter)

    Occasional movement : 15D (D=cable diameter)


CABLE CONSTRUCTION

Conductor:

7 wires stranded bare copper, according to IEC 60228/VDE 0295

Insulation:

PE

Insulation Color

According to DIN 47100

Shield:

Tinned copper braid

Jacket:

PVC

Color:

Grey (similar to RAL 7035)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Conditional oil resistance

Good performance of resistant to external EMI

Low Capacitance
