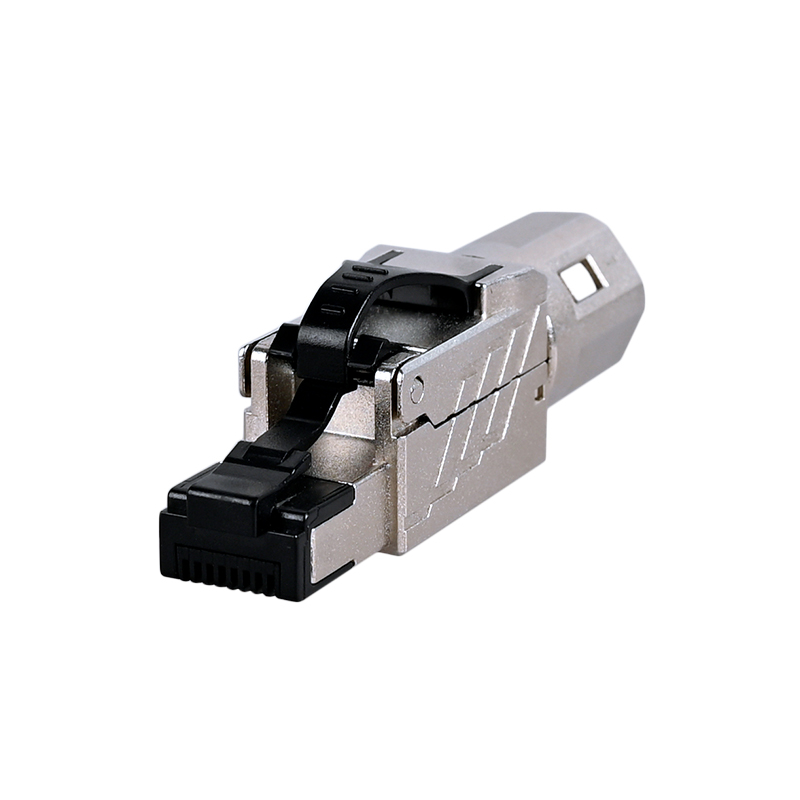

CAT8 MPTL

PCB adopts optimized compensation design scheme, higher margin index, tool-free termination, convenient and fast
The shell is 360° fully shielded to ensure the shielding performance of the product. It uses environmentally friendly materials and meets UL, REACH and RoHS requirements.
Availability:
Quantity:
CAT8 MPTL
  • zhaolong

REFERENCE STANDARD

YD/T 926.3、IEC 60603-7、ANSI/TIA-568.2-D、 ISO/IEC 11801


MATERIAL

PIN pin:

phosphor bronze, 50 μ’’ gold plated

IDC reed:

phosphor bronze, tinned 200 μ’’

Plastic parts:

ABS+PC, comply with UL 94V-0


PHYSICAL PARAMETERS

Plug life:

≥1000 times

Wiring life:

≥250 times

Working temperature:

-10 °C~ 60 °C

Storage temperature:

-40 °C~ 60 °C

Relative humidity:

10% ~ 90%


ELECTRICAL PARAMETERS

Insulation resistance:

≥ 500 MΩ withstand voltage

DC current:

1000 VAC

DC:

1.5 Amps

DC Resistance:

≤ 100 mΩ

Contact resistance:

≤ 20 mΩ
