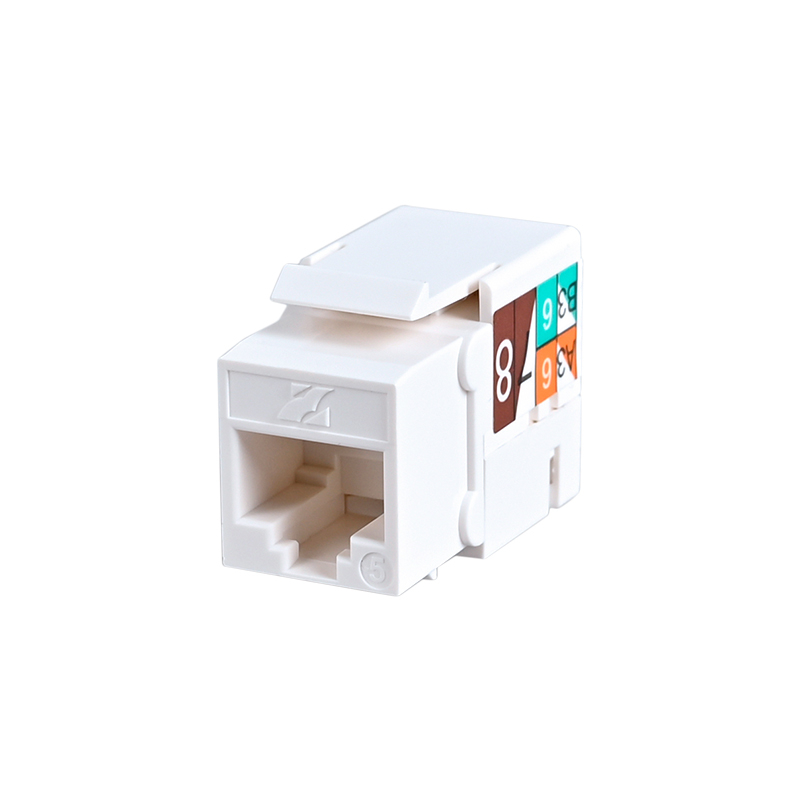

CAT5e Shielded Outlet

PCB adopts optimized compensation design scheme, higher margin index
The shell is 360° fully shielded to ensure the shielding performance of the product
Uses environmentally friendly materials and meets UL, REACH, and RoHS requirements
Availability:
Quantity:
  • zhaolong

MATERIAL

Plastic part: ABS, in accordance with UL94V-0

Front PIN part: phosphor bronze, nickel plated first 60μ, outer tin plated 120μ, and contact area with plug then 50μ gold plated

Rear IDC card connection part: phosphor bronze, nickel plated first 100μ, outer layer tin plated 200μ

Shielding shell: phosphor bronze (shielding module)


PHYSICAL PARAMETERS

Plug life:

750 times

Wiring life:

200 times, 22 to 26AWG solid conductor, 22 to 24AWG solid conductor (unshielded 90 degree module)

Working temperature:

-10 ℃ to 60 ℃

Storage temperature:

-40 ℃ to 68 ℃

Relative humidity:

10% ~ 90%


ELECTRICAL PARAMETERS

Insulation resistance:

500mΩ

Withstand voltage:

1000VAC

DC current:

1.5Amps

DC resistance:

0.1Ω

Contact resistance:

20mΩ
