Machine Vision

Machine Vision

Machine vision systems are widely used in moving parts such as robotic arms and have extremely high requirements for cables. Zhaolong's specially designed machine vision series products can easily reach 10 million bending requirements. The highly flexible design makes it very small bending radius,it can be easily installed in a narrow space, while maintaining excellent electrical performance, unmatched. Providing customers with a variety of camera interfaces, with excellent and stable performance in harsh environments, such as oil, acid, alkali, and humid environments. Ensure high-quality imaging and data accuracy.


Durable GigE / 10GigE


Zhaolong's GigE / 10GigE cables can provide reliable performance in a variety of harsh environments. Our cables are light-weight, very flexible, have a small bending radius, and are extremely easy to install. At the same time, the high bending life and the performance are unmatched.

1. Extremely soft, especially suitable for narrow space wiring or mobile installation.

2. Excellent CAT5e / CAT6A performance, supporting Gigabit network and 10 Gigabit network applications.

3. The ultra-high coverage braided shield has excellent resistance to external electromagnetic interference, ensuring signal reliability and integrity.

4. With a minimum bending radius of 50mm, the towline is used for more than 10 million cycles, which is durable and reduces maintenance, downtime and total costs during the life cycle of the equipment.

5. The screws on the camera end are locked to ensure reliable connection of the cable in a mobile environment.



Ultra-low Latency Camera Link

Latency is the core indicator for considering the performance of Camera link. Our cable has extremely low delay and good attenuation performance, and realizes zero error codes during data transmission.

1. Excellent performance, ultra-low delay, low attenuation.

2. Wire-to-aluminum foil shielding and ultra-high coverage overall braided shielding have excellent resistance to external electromagnetic interference, ensuring reliability and integrity of signal.

3. Long service life, reduce maintenance, downtime and total cost of equipment life cycle.

4. High quality 3M MDR / SDR connector.

5. The end screws are locked to ensure reliable connection of the cable in a mobile environment.



USB 3.0


The USB 3.0 cable specially designed for industrial cameras has good flexibility while maintaining high speed, and it is still reliable and durable in mobile environments.

1. Ultra-high transmission rate, up to 5Gb / s.

2. The cable is very soft and has a small bending radius, which is very convenient for installation in a small space.

3. Wire-to-aluminum foil shielding and ultra-high coverage overall braided shielding have excellent resistance to external electromagnetic interference, ensuring signal reliability and integrity.

4. Long service life, reduce maintenance, downtime and total cost of equipment life cycle.

5. The screws on the camera end are locked to ensure reliable connection of the cable in a mobile environment.

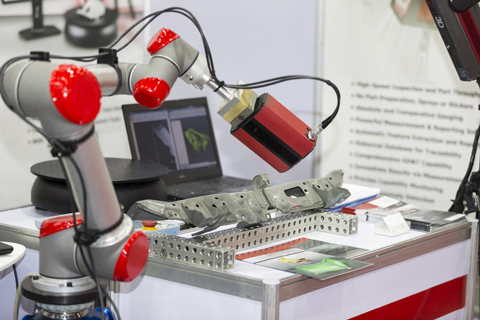

Machine Vision System Applied to Robotic ARM

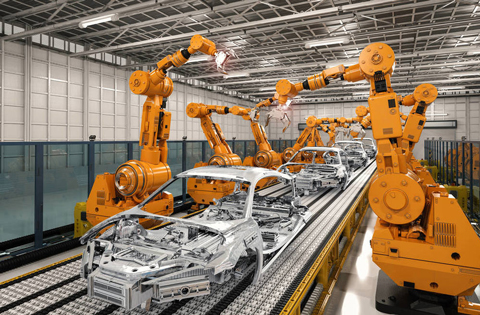

Our specially designed 10GigE cable assembly is used in the robot arm machine vision system of the automotive welding shop. It realizes the accurate measurement of the body-in-white size for automatic vision inspection technology to ensure accurate, timely and effective transmission of data.

The highly flexible process design of the cable can meet the requirement of 5 million times of twisting, and is particularly suitable for installation in the robot pipeline package. Each pair of core wires has an ultra-high coverage braided shield, which makes the cable have excellent resistance to external electromagnetic interference and ensure the reliability and integrity of the signal. The high-quality imported PUR sheath is very resistant to oil and acid and alkali. The high-quality all-metal field termination connector is easy to install and has high reliability. The dustproof and waterproof rating of M12 can reach IP67. The excellent design is especially suitable for harsh industries such as automotive production lines.
