REFERENCE STANDARD
IEC60332-1, IEC60332-3-24,EN50399
TEST STANDARD
ANSI/TIA-568-C.2-1、IEC61156-9

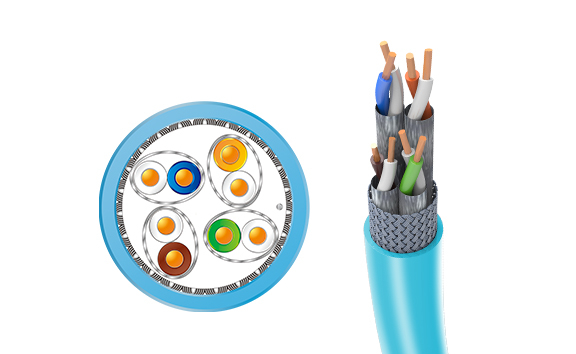

PHYSICAL PARAMETERS
ANconductor:
Solidbarecopper,23AWG
Insulationmaterial:
Skin-foam-skinPE
Insulationdiameter:
1.53±0.05mm
PIMF:
Aluminumfoiled
BraidingShield:
Tinnedcoppercoverage≥60%
Jacketdiameter:
9.0±0.4mm
Jacketmaterial:
PVCorLSZH(Dependingon differentjackets)
RoHSandREACHcompliant
MECHANICAL PARAMETERS
Tensilestrengthbeforeaging:
≥10.0Mpa
Elongationbeforeaging:
≥125%
Agingtime:
100℃×24hours×7days
Tensilestrengthafteraging:
≥8.0Mpa
Elongationafteraging:
≥100%
Coldbending(-20±2°C×4hours):
8timestheouterdiameterofcablewithnocracking
ELECTRICAL PARAMETERS
Propagationdelayskew:
≤25ns/100m
Rateoftransmission:
76%
Unbalancedcapacitancetoground:
Maximum 120pf/100m
DCresistance:
Maximum7.0Ω/100m
DCresistanceunbalance:
Maximum2%
REFERENCE STANDARD
IEC60332-1, IEC60332-3-24,EN50399
TEST STANDARD
ANSI/TIA-568-C.2-1、IEC61156-9
PHYSICAL PARAMETERS
ANconductor:
Solidbarecopper,23AWG
Insulationmaterial:
Skin-foam-skinPE
Insulationdiameter:
1.53±0.05mm
PIMF:
Aluminumfoiled
BraidingShield:
Tinnedcoppercoverage≥60%
Jacketdiameter:
9.0±0.4mm
Jacketmaterial:
PVCorLSZH(Dependingon differentjackets)
RoHSandREACHcompliant
MECHANICAL PARAMETERS
Tensilestrengthbeforeaging:
≥10.0Mpa
Elongationbeforeaging:
≥125%
Agingtime:
100℃×24hours×7days
Tensilestrengthafteraging:
≥8.0Mpa
Elongationafteraging:
≥100%
Coldbending(-20±2°C×4hours):
8timestheouterdiameterofcablewithnocracking
ELECTRICAL PARAMETERS
Propagationdelayskew:
≤25ns/100m
Rateoftransmission:
76%
Unbalancedcapacitancetoground:
Maximum 120pf/100m
DCresistance:
Maximum7.0Ω/100m
DCresistanceunbalance:
Maximum2%
