New Favorite for Energy Storage Communication: Zhaolong Industrial Ethernet CAT6A Cable Assemblies​

The safety and efficiency of modern energy storage systems rely heavily on stable, high-performance communication between internal devices. Zhaolong’s Industrial Ethernet CAT 6A cable assemblies directly address three key communication challenges in energy storage environments: low transmission rates, poor anti-interference capability, and inadequate communication stability.

Our products deliver 10 Gigabit high‑speed transmission to ensure real‑time data exchange. Advanced shielding effectively mitigates complex electromagnetic interference inside cabinets. In addition, excellent flexibility, oil resistance, flame retardancy, and a wide operating temperature range enable reliable operation in harsh energy storage conditions, building a stable and robust “neural network” for the entire system.

Technology Decoded: How Zhaolong CAT 6A Assemblies Create a “High-Speed Highway” for Energy Storage Communication?

Zhaolong’s Industrial Ethernet CAT 6A cable assembly series fully complies with the CAT 6A standard, supports 10 Gigabit Ethernet, and meets IEC 60332-1-2 flame retardant requirements. The three main models—ETHERNET CAT 6A, ETHERNET FLEX CAT 6A, and ETHERNET FD CAT 6A—each optimize conductor structure, flexibility, and application suitability, together ensuring efficient and stable communication across energy storage systems.

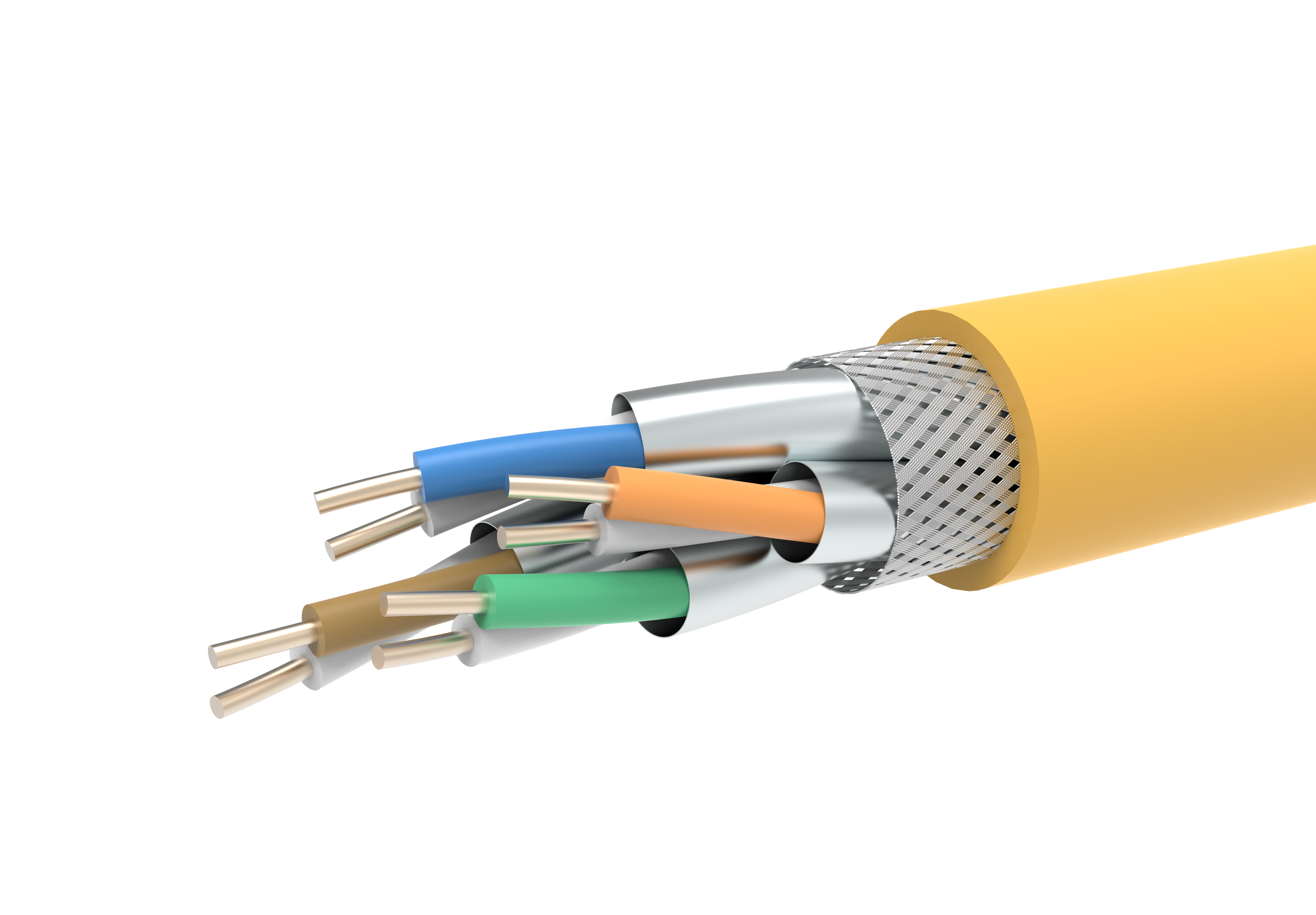

Zhaolong ETHERNET CAT 6A Cable

Zhaolong ETHERNET FLEX CAT 6A Cable

Zhaolong ETHERNET FD CAT 6A Cable

Selection Guide: Full Coverage for Energy Storage Scenarios – Tailored Solutions with Zhaolong CAT 6A Cable Assemblies

Zhaolong’s Industrial Ethernet CAT 6A cable assemblies are formed by molding Zhaolong ETHERNET CAT 6A cable with RJ45 connectors, offering an optimal balance of performance, reliability, and cost-effectiveness. Users can select the most suitable model based on their specific energy storage application.

For fixed installation scenarios inside battery enclosures or energy storage containers, where equipment layout is compact and the environment is relatively stable, the Zhaolong ETHERNET CAT 6A Cable Assembly is recommended. Featuring solid conductors and robust shielding, it effectively resists electromagnetic interference from power electronic devices, ensuring stable connections between battery cluster data acquisition units and switches.

For limited‑movement applications within PCS cabinets or between control cabinets—such as door openings, maintenance operations, or minor cable bending—the Zhaolong ETHERNET FLEX CAT 6A Cable Assembly is ideal. With stranded conductors and improved flexibility (minimum bending radius of 15× cable diameter for moving applications), it adapts well to slight positional changes. The optional PUR jacket provides excellent oil and abrasion resistance, making it suitable for complex cabinet environments.

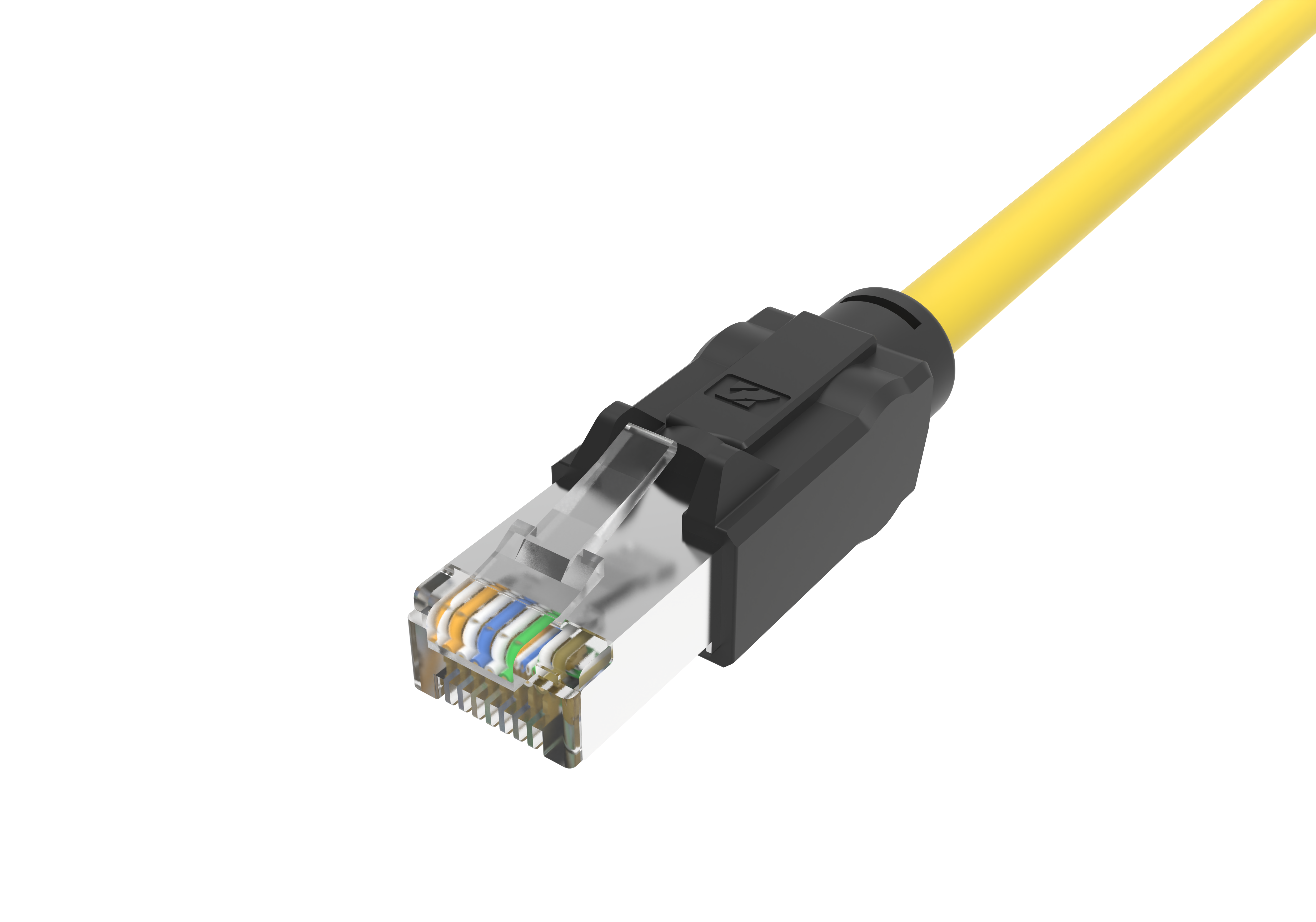

Zhaolong ETHERNET CAT 6A Cable Assembly

For high‑dynamic applications requiring continuous movement—such as inspection robots—the Zhaolong ETHERNET FD CAT 6A Cable Assembly is the top choice. Designed specifically for highly flexible dynamic use, it features highly flexible stranded copper conductors, a small bending radius (10× cable diameter for moving applications), and an extended flex life, minimizing mechanical damage from repeated motion.

If the installation environment is near high-current lines or frequency converters, S/FTP (shielded/foiled twisted pair) models are recommended for superior electromagnetic interference resistance.

Supplementary Recommendations:

For areas with frequent human contact or higher fire safety requirements, LSZH (Low Smoke Zero Halogen) jackets are available to enhance overall safety.

Technical Accumulation and Innovation: Zhaolong CAT 6A Cable Assemblies Empower the Energy Storage Industry

As a full member of the China Communications Standards Association (CCSA) and a contributor to national data cable standards, Zhaolong Interconnect has specialized in the design, manufacturing, and sales of data cables, specialty cables, and connectivity products since 1993.

Leveraging decades of technical know-how and continuous innovation, Zhaolong’s Industrial Ethernet CAT 6A cable assemblies have been widely adopted in the energy storage industry. They enable reliable Ethernet communication between battery clusters and combiner units, with customizable lengths to meet diverse application needs.

In the future, Zhaolong will continue to collaborate with industry partners, contributing to the development of smart energy storage through high‑performance connectivity solutions.
