SPE

The latest single-pair Ethernet design is used in a wide range of industrial automation applications, intelligent buildings and vehicle-mounted systems. It has the advantages of miniaturization and high-speed technology, and is the main competitor of future industrial communications.
Quantity:
  • SPE
  • zhaolong

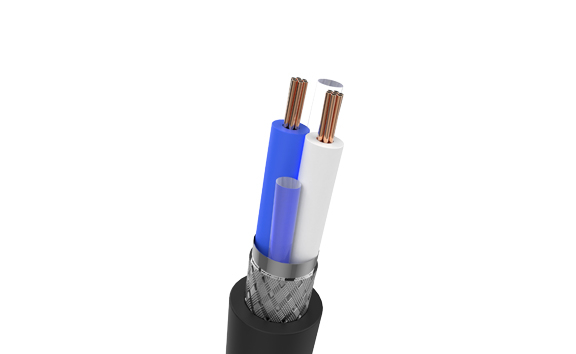

Cable structure

Conductor: Stranded copper conductor

Insulation: special material

Shielding: aluminum foil wrapped and tinned copper braid

Sheath: see attached table

Colour: Black


FEATURES

Ultra-high speed, supporting 40 meters of 1Gbps and 15 meters of 10Gbps data transmission

Ultra-long transmission distance, support 1000 meters 10Mbps data transmission

Support data line power supply (PoDL) function, up to about 50w

The minimalist design of a single pair of cables has a smaller outer diameter and bending radius

With a dedicated SPE connector, it has the huge advantages of miniaturization, high density and quick installation

Has super strong ability to resist external electromagnetic interference


TECHNICAL PARAMETERS

-temperature range

See Schedule

—Characteristic impedance: 100Ω

—Conductor DC resistance (20℃):

Conductor DC resistance@20℃:

26AWG≤150Ω/km

22AWG≤55.4Ω/km

18WG≤21.8Ω/km


SPE
