LONGTRONIC® ETHERNET PROFINET TYPE A

Application
This cable is designed for PROFINET and widely used in industrial Ethernet fields, such as machines, equipments, instruments and control panel. Electrical performance according to CAT5e. Suitable for fixed application.

Quantity:
  • PROFINET TYPE A
  • zhaolong

technical parameters

—Temperature Range PVC: -20°C ~ 70°C  FRNC: -40°C ~ 80°C

—Test Voltage 2000V / min (AC)

—Characteristic Impedance 100±15Ω

—Conductor DCR (20℃)  ≤60Ω/ km

—Minimum Bending Radius     Fixed Application: 10D (D = cable diameter)

 —Reference standard IEC61156-9

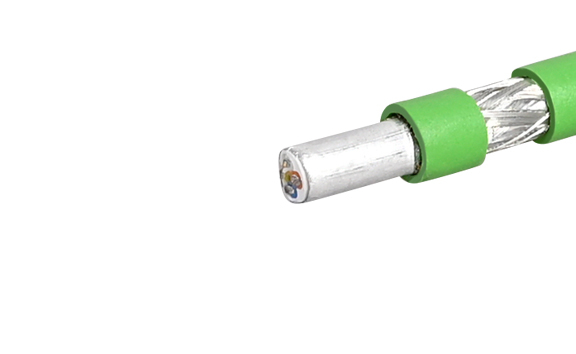

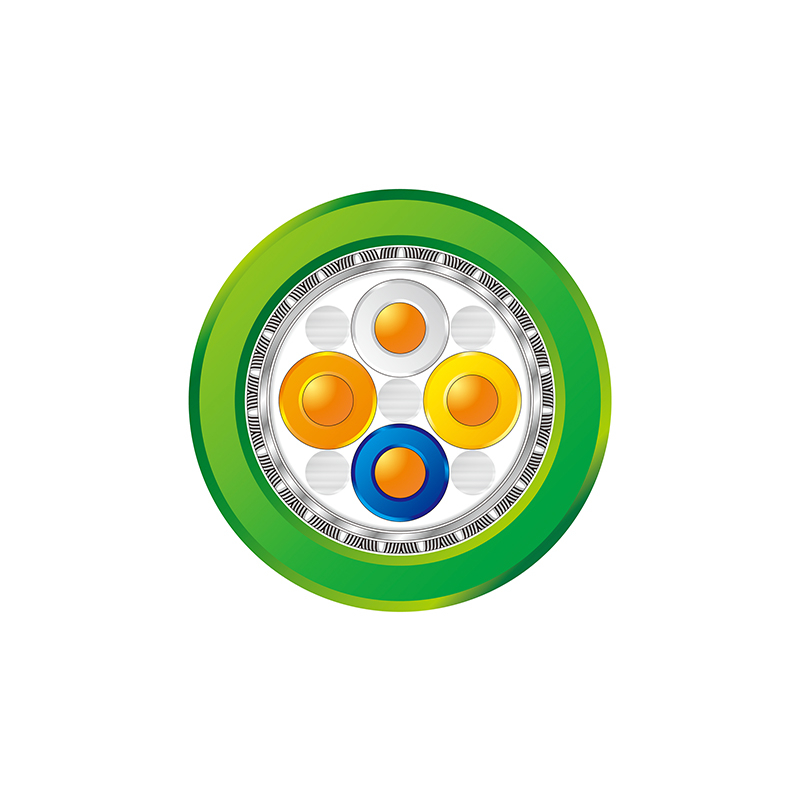

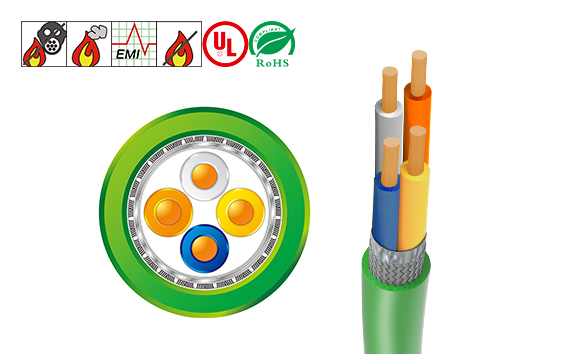

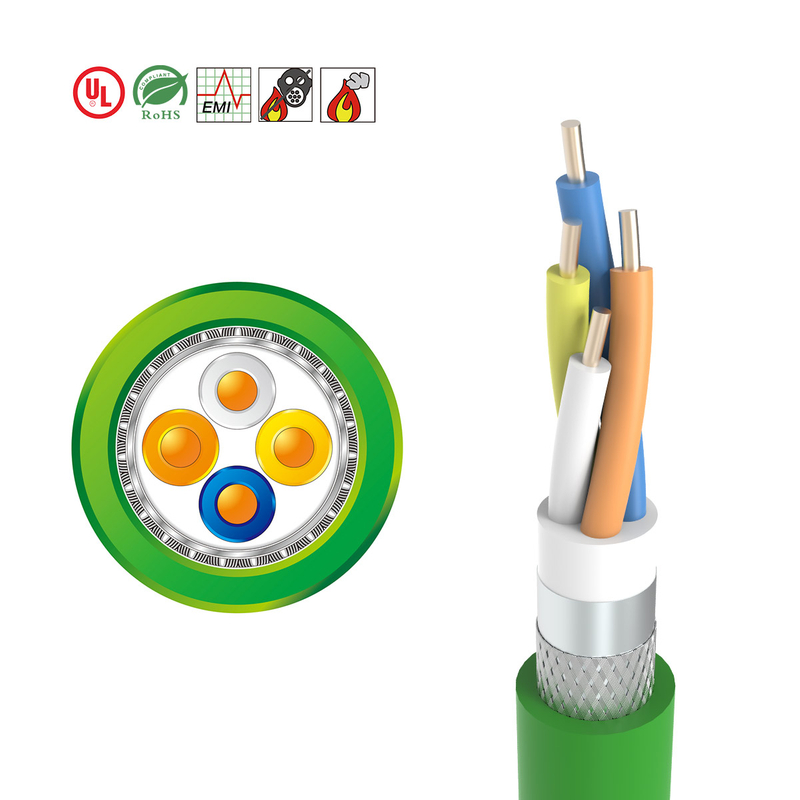

CABLE CONSTRUCTION

Conductor:

Solid bare copper

Insulation:

PE

Color:

White, Yellow, Blue, Orange

Inner jacket:

PVC

FRNC

Shield:

AL / Mylar wrapped and tinned copper braid

Jacket:

PVC

FRNC

Color:

Green (similar to RAL6018)


FEATURES

Flame resistance according to IEC60332-1

Have good performance of resistant to external EMI

Halogen free,low smoke for FRNC jacket cable

Excellent transmission performance
