FD CAT6A
zhaolong
CHARACTERISTIC
Flame retardancy meets iec60332-1-2
Good flexibility and small bending radius
It has good anti external electromagnetic interference ability
Pur sheath is particularly oil resistant and abrasion resistant
The signal transmission frequency can reach 500MHz

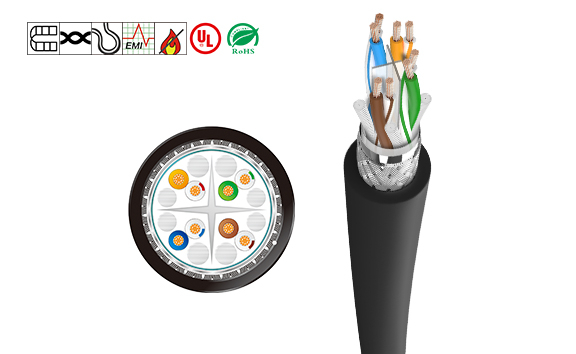

Cable structure
Conductor: high flexibility stranded copper conductor, conforming to IEC 60228 / VDE 0295 class 6 conductor standard
Insulation: PE or foamed PE
shield
SF / UTP: aluminum foil shielding and tinned copper braiding
S / ftp: wire to aluminum foil shielding and tinned copper braiding
Sheath: PVC / pur
Color: black, yellow
TECHNICAL PARAMETER
temperature range
Fixed application: - 40 ℃ ~ 80 ℃
Occasional movement: - 5 ℃ ~ 60 ℃
Test voltage
1000V/min(DC)
CHARACTERISTIC IMPEDANCE
100±15Ω@100MHz
insulation resistance
≥5GΩ.km
Minimum bending radius
Fixed application: 5D (d = cable diameter)
Occasional movement: 10d (d = cable diameter)
Reference standard
IEC61156-6、ANSI/TIA-568.2-D、EN50173&ISO/IEC11801
CHARACTERISTIC
Flame retardancy meets iec60332-1-2
Good flexibility and small bending radius
It has good anti external electromagnetic interference ability
Pur sheath is particularly oil resistant and abrasion resistant
The signal transmission frequency can reach 500MHz
Cable structure
Conductor: high flexibility stranded copper conductor, conforming to IEC 60228 / VDE 0295 class 6 conductor standard
Insulation: PE or foamed PE
shield
SF / UTP: aluminum foil shielding and tinned copper braiding
S / ftp: wire to aluminum foil shielding and tinned copper braiding
Sheath: PVC / pur
Color: black, yellow
TECHNICAL PARAMETER
temperature range
Fixed application: - 40 ℃ ~ 80 ℃
Occasional movement: - 5 ℃ ~ 60 ℃
Test voltage
1000V/min(DC)
CHARACTERISTIC IMPEDANCE
100±15Ω@100MHz
insulation resistance
≥5GΩ.km
Minimum bending radius
Fixed application: 5D (d = cable diameter)
Occasional movement: 10d (d = cable diameter)
Reference standard
IEC61156-6、ANSI/TIA-568.2-D、EN50173&ISO/IEC11801
