LONGFLEX® MC 410

Applications:
Can be used as control cables in tool machines, conveyor belts, production lines of machinery production,and air-conditioning systems. It is suitable for fixed applications or non-sustained shuttle bending movement, but not for outdoor installation.
Availability:
Quantity:
LONGFLEX® MC 410
LONGFLEX® MC 410
LONGFLEX® MC 410
LONGFLEX® MC 410
  • MC 410

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Occasional Movement: -5°C~70°C

—Test Voltage

    4000V

—Insulation Resistance(20°C)

    ≥20MΩ.km

—Rated Voltage

    300/500V

    450/750V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Occasional Movement: 15D(D=cable diameter)

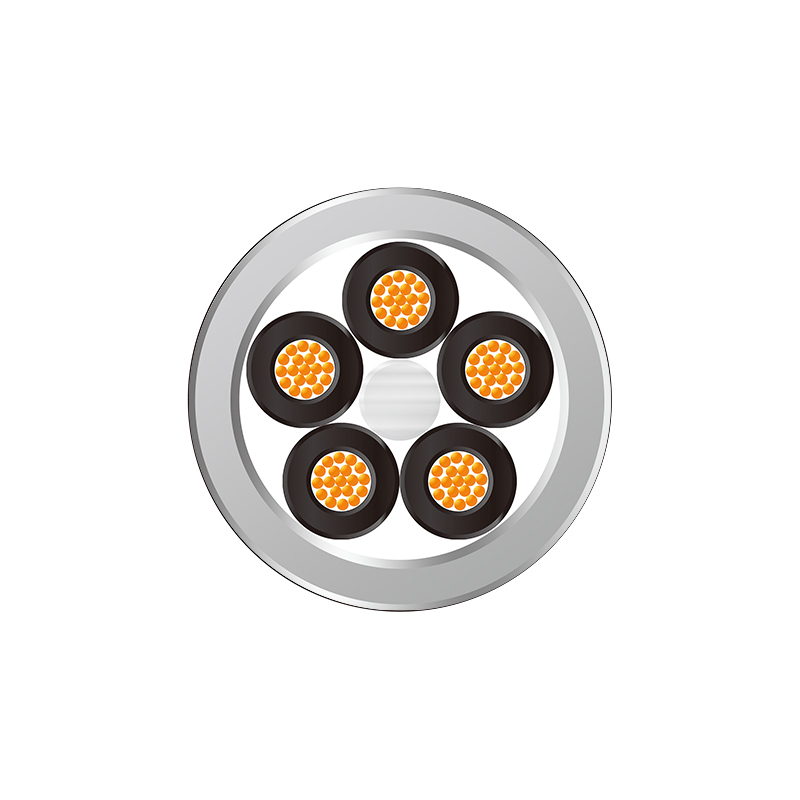

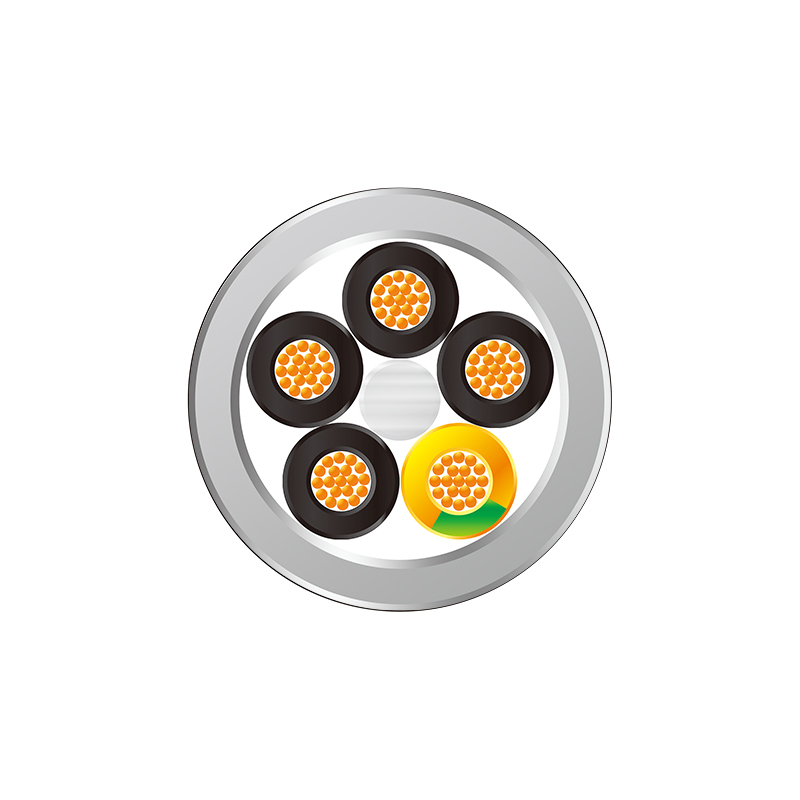

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class5

Insulation:

PVC

Insulation Color:

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Have small bending radius and good flexibility

Conditional oil resistance

Have smaller outer diameter to save space.
