LONGFLEX® MC 817 CP

Applications
Can be used as control cables in tool machines, conveyor belts, production lines of machinery production and air-conditioning systems, adapting to greasy and wet environment with serious electrical interference. It is suitable for fixed applications or non-sustained shuttle bending movement and can also be used outdoors in low temperature.
Quantity:
  • MC 817 CP
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

     Fixed Application: -50°C~90°C

    Occasional Movement: -40°C~80°C

—Test Voltage

    3000V

—Insulation Resistance(20°C)

     ≥20MΩ.km

—Rated Voltage

    300/500V

—Minimum Bending Radius

    FixedApplication: 6D(D=cable diameter)

    OccasionalMovement: 15D(D=cable diameter)

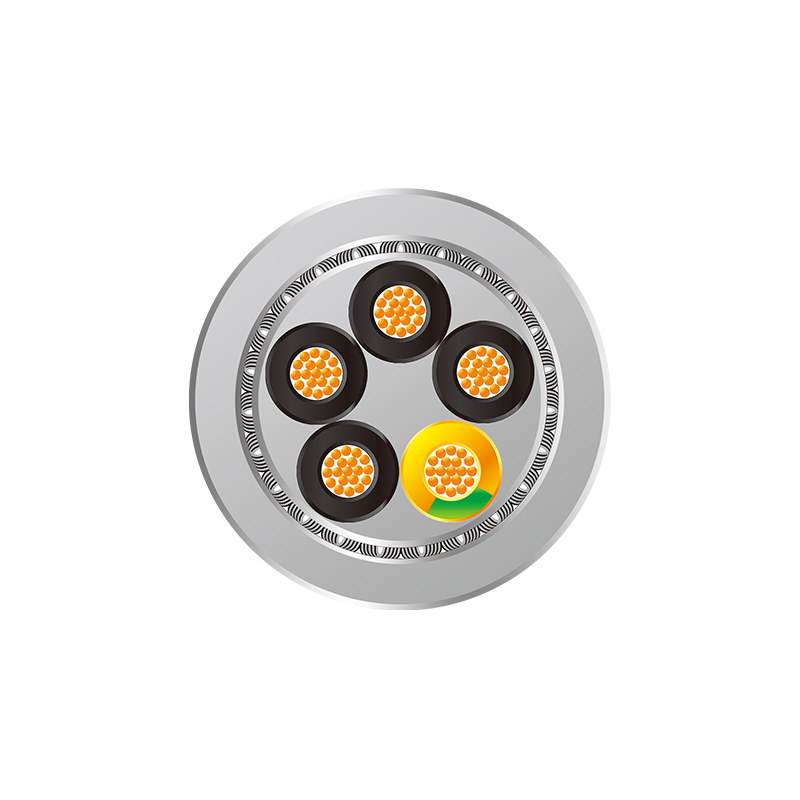

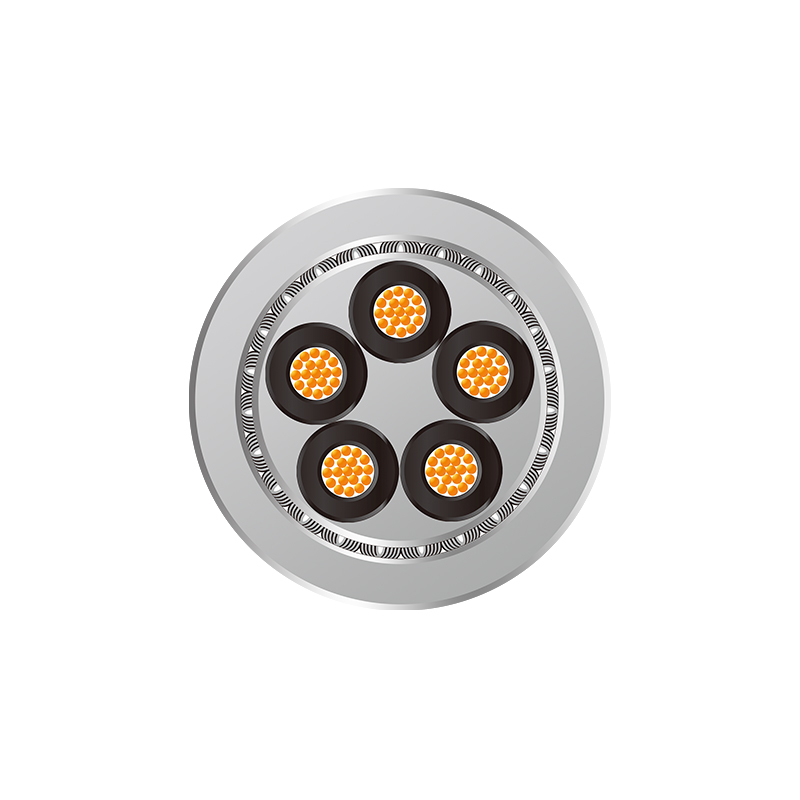

CABLE CONSTRUCTION

Conductor

Fine stranded bare copper, accordingto IEC 60228/VDE 0295 class5

Insulation

TPE

Insulation Color

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Inner Jacket

TPE

Shield

Tinned copperbraiding

Outer Jacket

PUR

Color

Grey(similar to RAL7001)


FEATURES

Flame resistance according to IEC60332-1

Have small bending radius and good flexibility

Halogen free

Extremely oil resistance, Abrasion resistance and anti-hydrolysis

Excellent resistance to external EMI
