MC 411 CY
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
4000V
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
450/750V
—Minimum Bending Radius
Fixed Application: 6D(D=cable diameter)
Occasional Movement: 20D(D=cable diameter)

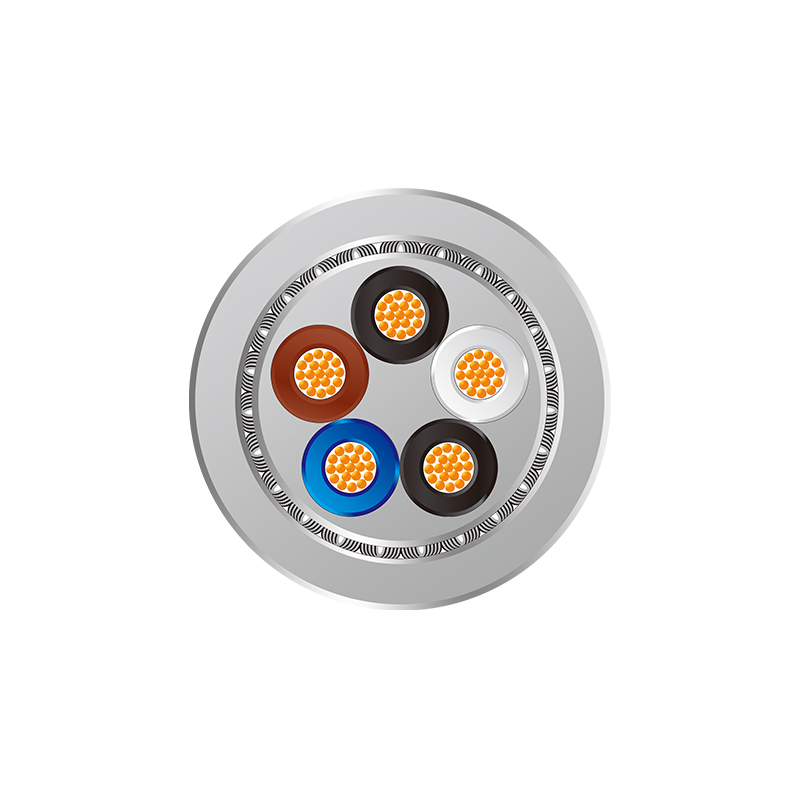

CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class5
Insulation:
PVC
Insulation Color:
5 cores and below accord with DIN VDE 0293, 6 cores and above accord with ZHAOLONG colorcode, green-yellow conductor
Inner Jacket:
PVC
Shield:
Tinned copper braiding
Outer Jacket:
PVC Color:Transparent
FEATURES
Flame resistance according to IEC60332-1
Small bending radius and good flexibility
Conditionaloil resistance
Excellent resistance to external EMI
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
4000V
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
450/750V
—Minimum Bending Radius
Fixed Application: 6D(D=cable diameter)
Occasional Movement: 20D(D=cable diameter)
CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class5
Insulation:
PVC
Insulation Color:
5 cores and below accord with DIN VDE 0293, 6 cores and above accord with ZHAOLONG colorcode, green-yellow conductor
Inner Jacket:
PVC
Shield:
Tinned copper braiding
Outer Jacket:
PVC Color:Transparent
FEATURES
Flame resistance according to IEC60332-1
Small bending radius and good flexibility
Conditionaloil resistance
Excellent resistance to external EMI
