MC 412 CY
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
Core/Core: 4000V
Core/Shield: 2000V
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
—Minimum Bending Radius
Fixed Application: 6D(D=cable diameter)
Occasional Movement: 20D(D=cable diameter)

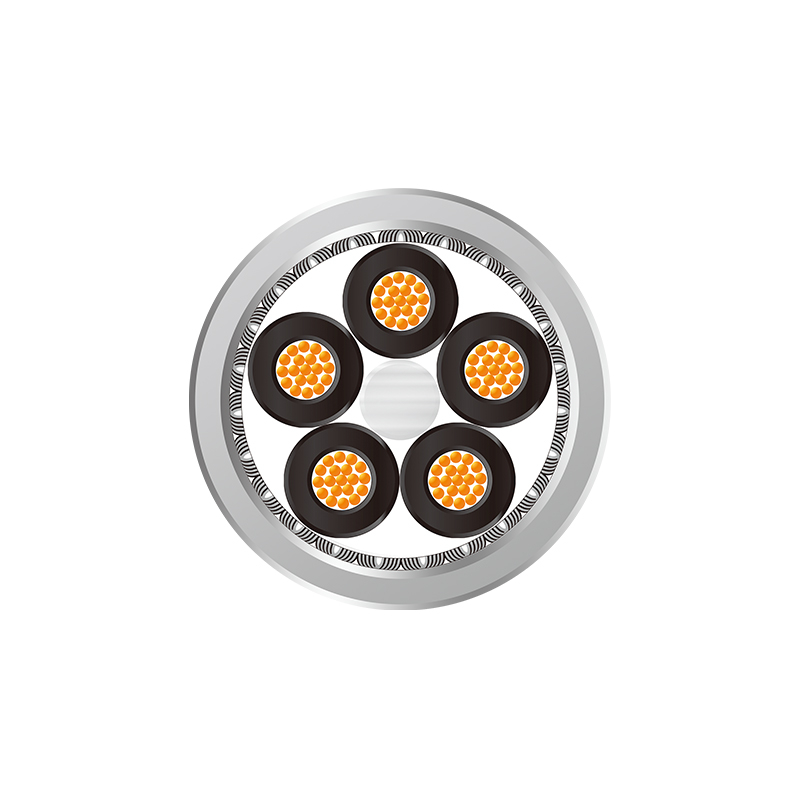

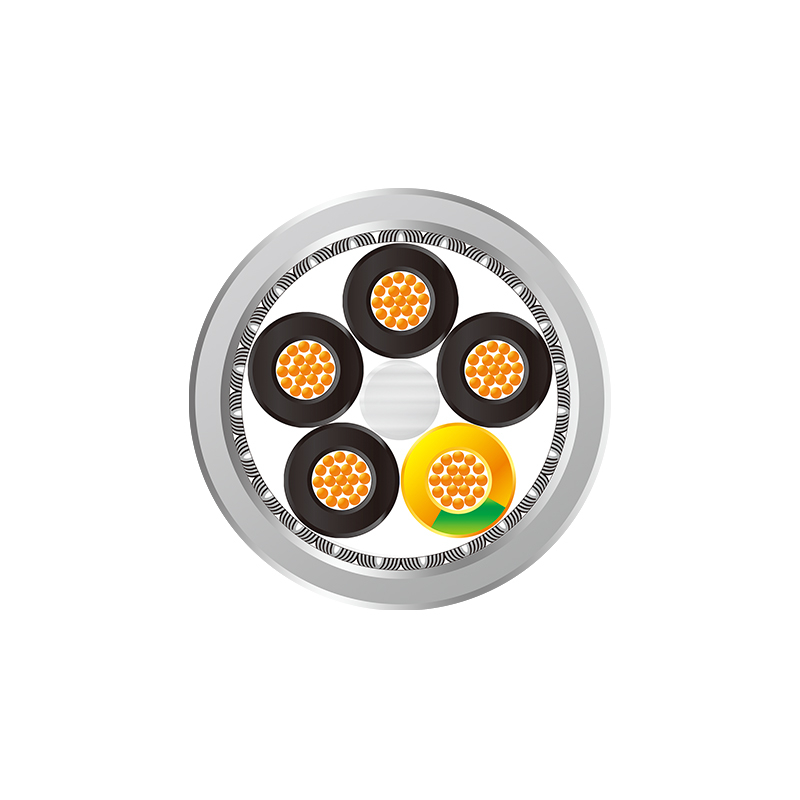

CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 02955
Insulation:
PVC
Insulation Color:
According to DIN VDE 0293, black cores with white numbering, green-yellow conductor
Shield:
Tinned copper braiding
Jacket:
PVC
Color:
Grey(similar to RAL 7001)
FEATURES
Flame resistance according to IEC60332-1
Small bending radius and good flexibility
Conditional oil resistance
Excellent resistance to external EMI
Have small outer diameter without inner jacket to save space.
