MC 712 CP
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
Core/Core: 4000V
Core/Shield: 2000V
—InsulationResistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
— Minimum Bending Radius
FixedApplication: 6D(D=cablediameter)
OccasionalMovement: 20D(D=cablediameter)

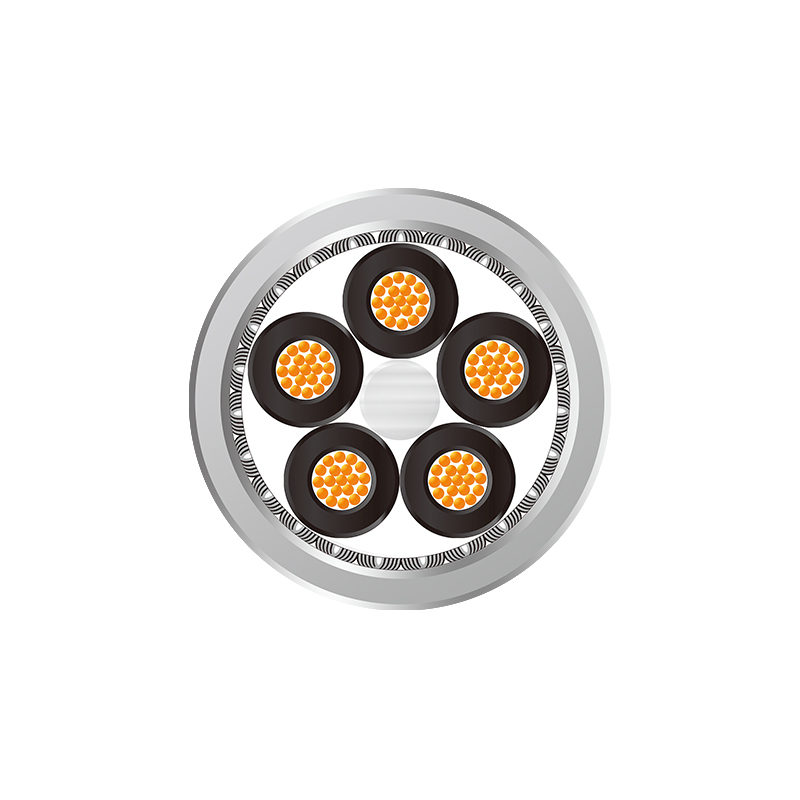

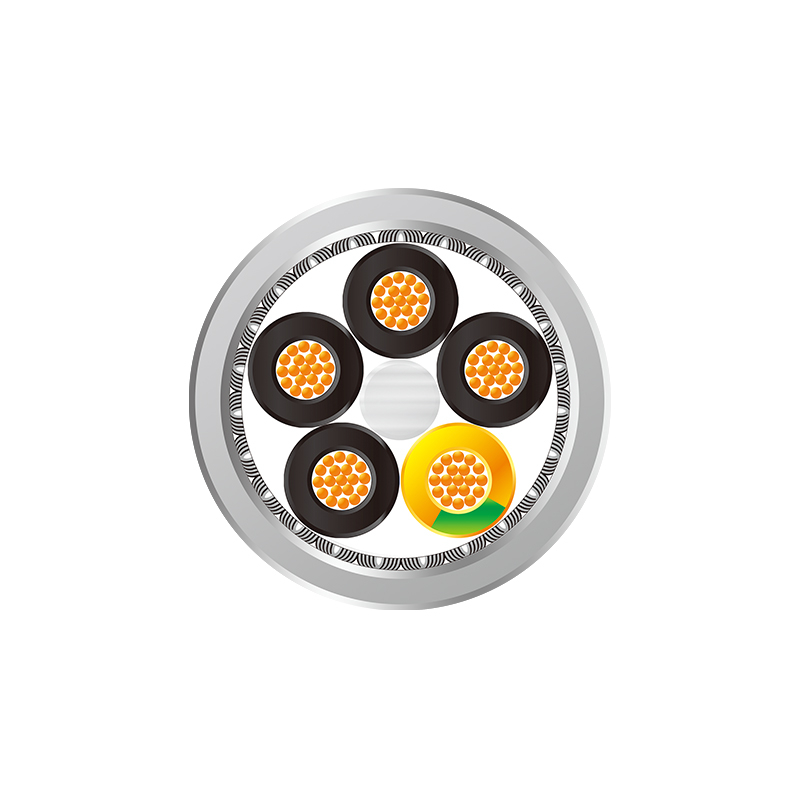

CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0299 class5
Insulation:
PVC
Insulation Color:
According to DIN VDE 0293,black cores with white numbering, green-yellow conductor
Shield:
Tinned copper braiding
Jacket:
PUR
Color:
Grey(similar to RAL 7001)
FEATURES
Flame resistance according to IEC60332-1
Have small bending radius and good performance of flexibility
Extremely oil resistance, abrasion resistance and anti-hydrolysis
Excellent resistance to external EMI
Have small outer diameter without inner jacket to save space
