LONGFLEX® MC 411

Applications
Can be used as control cables in tool machines,conveyor belts, production lines of machinery production,and air-conditioning systems. It is suitable for fixed applications or non-sustained shuttle bending movement, but not for outdoor installation.
Quantity:
  • MC 411
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Occasional Movement: -5°C~70°C

—Test Voltage

    4000V

—Insulation resistance(20°C)

    ≥20MΩ.km

—Rated Voltage

    300/500V

    450/750V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Occasional Movement: 15D(D=cable diameter)

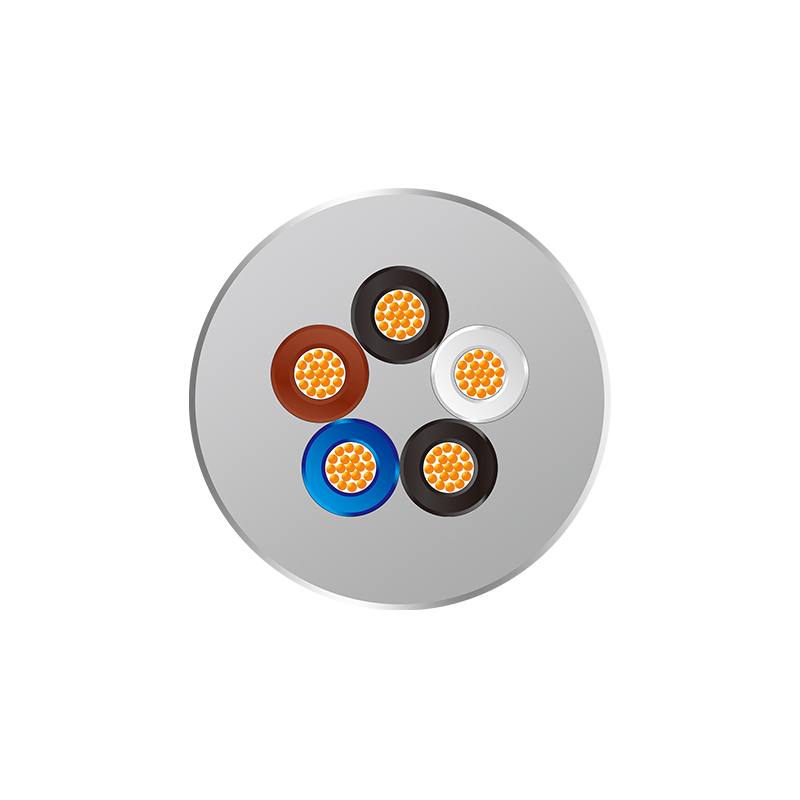

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295class5

Insulation:

PVC

Insulation Color:

5 cores and below accord with DIN VDE 0293, 6 cores and above accord with ZHAOLONG color code;  green-yellow conductor

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Have small bending radius and good flexibility

Conditional oil resistance

Have small outer diameter to save space
