MC 710 P
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
4000V
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
—Minimum Bending Radius
Fixed Application: 4D(D=cable diameter)
Occasional Movement: 12.5D(D=cable diameter)

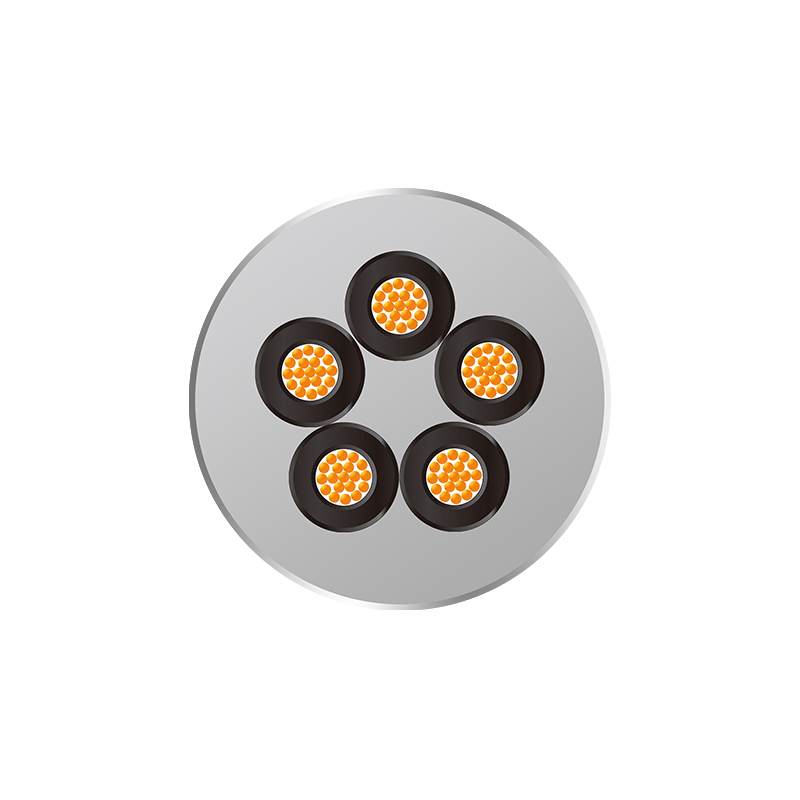

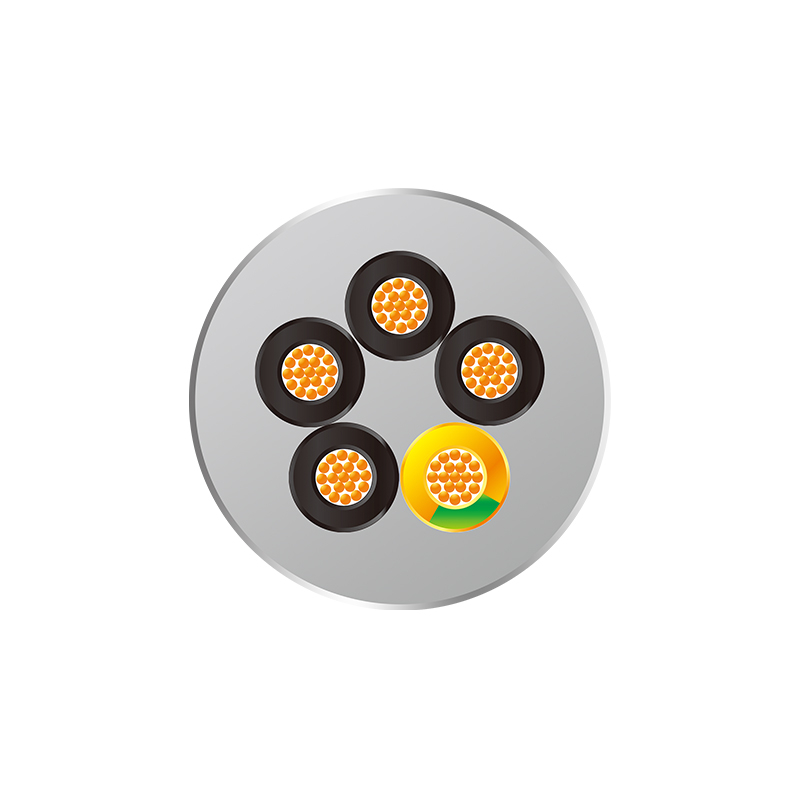

CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class5
Insulation:
PVC
Insulation Color:
According to DIN VDE 0293, black cores with white numbering, green-yellow conductor
Jacket:
PUR
Color:
Grey(similar to RAL 7001)
FEATURES
Flame resistance according to IEC60332-1
Good flexibility and small banding radius
Extremely oil resistance, abrasion resistance and anti-hydrolysis
Have smaller outer diameter to save space.
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Occasional Movement: -5°C~70°C
—Test Voltage
4000V
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
—Minimum Bending Radius
Fixed Application: 4D(D=cable diameter)
Occasional Movement: 12.5D(D=cable diameter)
CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class5
Insulation:
PVC
Insulation Color:
According to DIN VDE 0293, black cores with white numbering, green-yellow conductor
Jacket:
PUR
Color:
Grey(similar to RAL 7001)
FEATURES
Flame resistance according to IEC60332-1
Good flexibility and small banding radius
Extremely oil resistance, abrasion resistance and anti-hydrolysis
Have smaller outer diameter to save space.
