LONGFLEX® CHAIN 420

Applications
Can be used as control cables in CNC machine tools, engraving machines, wood workin gmachines, steel production and other automation equipment production lines in all kinds of machines. It is very suitable for drag chain or frequent movement.
Quantity:
  • CHAIN 420
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~70°C

    Mobile Application: -5°C~70°C

—Test Voltage

    4000V/5min(AC)

—Insulation Resistance(20°C)

    ≥20MΩ.km

—Rated Voltage

    300/500V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 10D(D=cable diameter)

—Application of drag chain

    1~3milliontimes

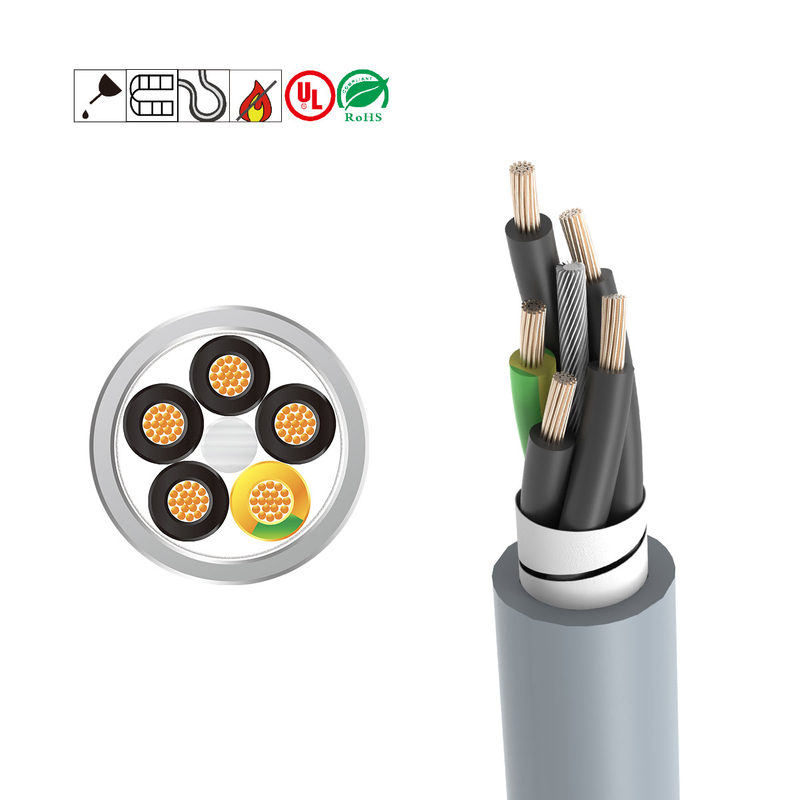

CABLE CONSTRUCTION

Conductor:

Fined stranded bare copper, according to IEC 60228/VDE 0295 class 5

Insulation:

PVC

Insulation Color:

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance
