LONGFLEX® CHAIN FD 431 CY

Applications
Can be used as signal control cables in low voltage system of CNC machines tools, engraving machines, wood working machines and other automation equipment production lines in all kinds of machines. It is very suitable for drag chain or frequent movement.

Quantity:
  • CHAIN FD 431 CY
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Mobile Application: -5°C~70°C

—Test Voltage

    2000V/min(AC)

—Insulation Resistance(20°C)

    ≥10MΩ.km

—Rated Voltage

    30V

—Minimum Bending Radius

    FixedApplication: 4D(D=cable diameter)

    Mobile Application:7.5D(D=cable diameter)

—Technical Certification:

    UL2464

—Application of drag chain

    3~8 million times

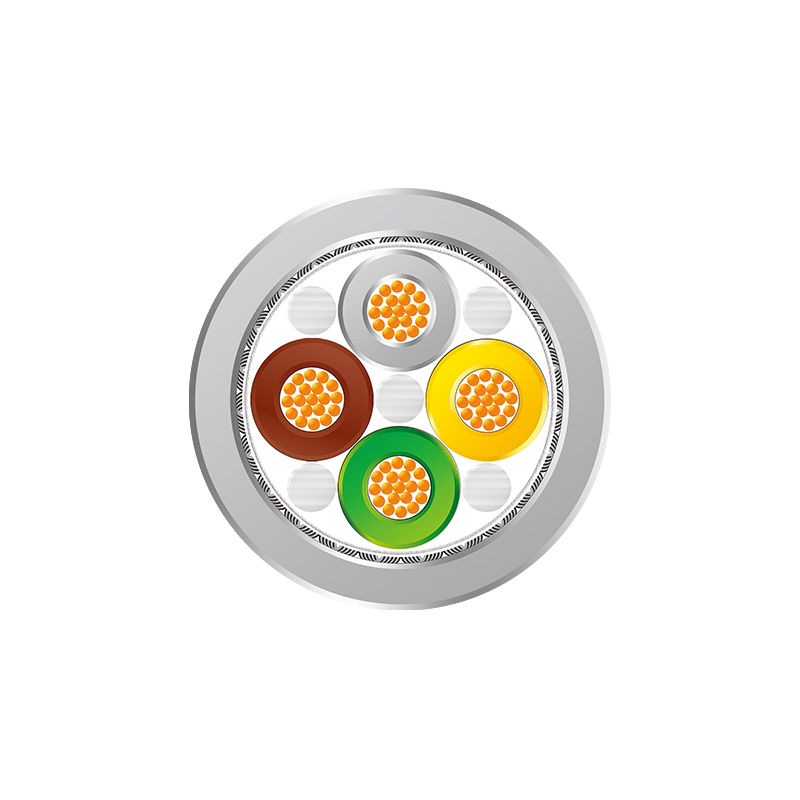

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

PVC

InsulationColor:

According to DIN 47100

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance
