LONGFLEX® CHAIN FD 730 P

Applications
CanbeusedascontrolcablesinCNCmachinetools, engravingmachines,woodworkingmachines,steelproductionandother automationequipmentproductionlinesinallkindsofmachines.Itisvery suitablefordragchainapplicationorfrequentmovementingreasyenvironment.
Quantity:
  • CHAIN FD 730 P
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~70°C

    Mobile Application: -5°C~70°C

—Test Voltage

    4000V/5min(AC)

—Insulation Resistance(20°C)

    ≥20MΩ.km

—Rated Voltage

    300/500V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 7.5D(D=cable diameter)

—Application of drag chain

    3~8 million times

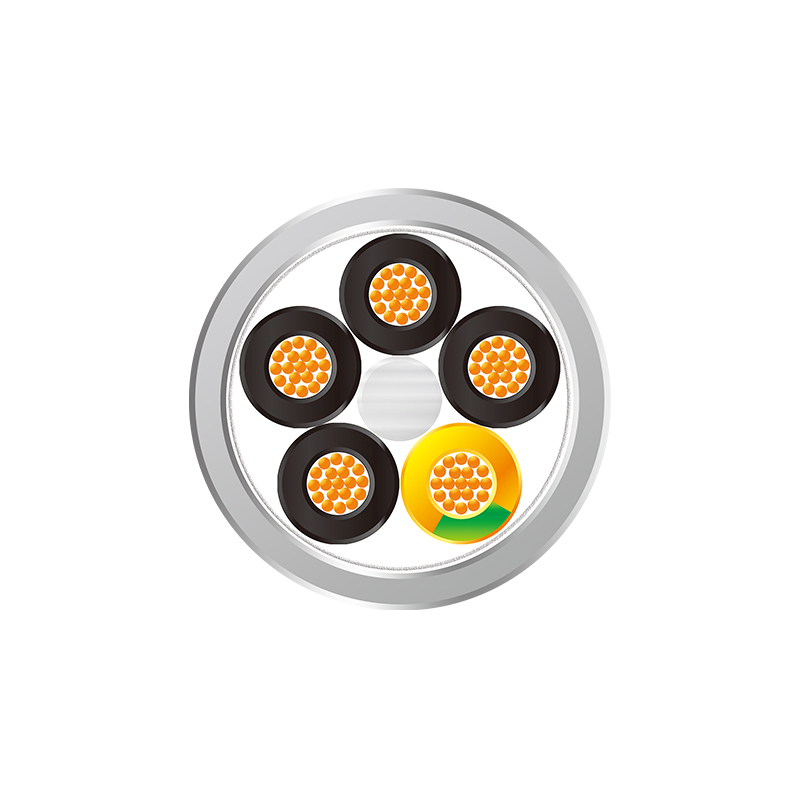

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 5

Insulation:

PVC

Insulation Color:

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Shielded:

Tinned copper braiding

Jacket:

PUR

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property off lexibility

Small bending radius

Good performance of oil resistance, abrasion resistance and anti-hydrolysis

Especially designed for cyclic movement towline
