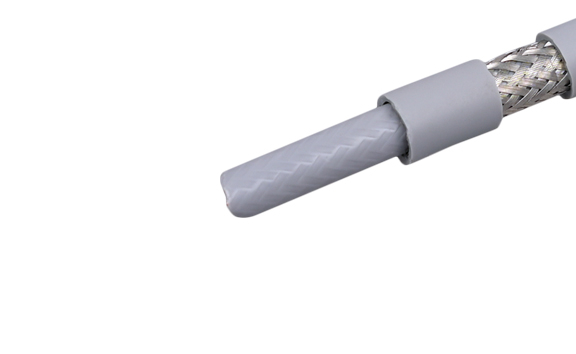

CHAIN FD 440
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Mobile Application: -5°C~70°C
—Test Voltage
2000V/5min(AC)
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
—Minimum Bending Radius
Fixed Application: 4D(D=cable diameter)
Mobile Application: 7.5D(D=cable diameter)
—Technical Certification
UL2464
—Application of drag chain
5~10milliontimes
CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
TPE
Insulation Color:
≤0.34mm2 according to DIN4 7100
≥0.5mm2 black cores with white numbering, green-yellow conductor(3 cores and above)
Shielded:
Tinned copper braiding
Jacket:
PV
Color:
Grey(similar to RAL 7001)
FEATURES
Flame resistance according to IEC60332-1
Good property of flexibility
Small bending radius
Good oil resistance
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~80°C
Mobile Application: -5°C~70°C
—Test Voltage
2000V/5min(AC)
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
—Minimum Bending Radius
Fixed Application: 4D(D=cable diameter)
Mobile Application: 7.5D(D=cable diameter)
—Technical Certification
UL2464
—Application of drag chain
5~10milliontimes
CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
TPE
Insulation Color:
≤0.34mm2 according to DIN4 7100
≥0.5mm2 black cores with white numbering, green-yellow conductor(3 cores and above)
Shielded:
Tinned copper braiding
Jacket:
PV
Color:
Grey(similar to RAL 7001)
FEATURES
Flame resistance according to IEC60332-1
Good property of flexibility
Small bending radius
Good oil resistance
