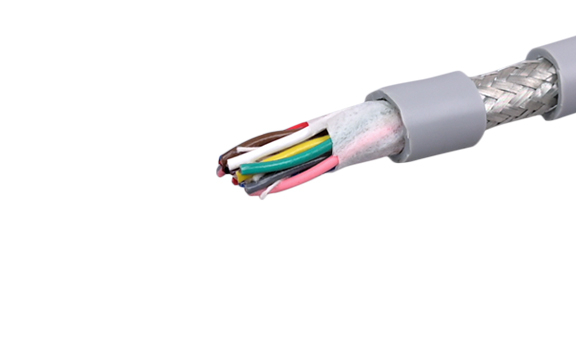

LONGFLEX® CHAIN FD 431 CY-TP

Applications
Can be used as signal control cables in low voltage system of CNC machine tools, engraving machines, wood working machines and other automation equipment production lines in all kinds of machines.Intended for the place with serious electrical interference. It is very suitable for drag chain or frequent movement.

Quantity:
  • CHAIN FD 431 CY-TP
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Mobile Application: -5°C~70°C

—Test Voltage

    500V/min(AC)

—Insulation Resistance(20°C)

    ≥10MΩ.km

—RatedVoltage

    30V

—Minimum Bending Radius

    Fixed Application: 4D(D=cablediameter)

    Mobile Application: 7.5D(D=cablediameter)

—Technical Certification

    UL20276

—Application of drag chain

    3~8milliontimes


CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VD E0295 class 6

Insulation:

PVC

Insulation Color:

According to DIN47100

Shielded:

Tinned copper braiding

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance

Good performance of resistance to external EMI
