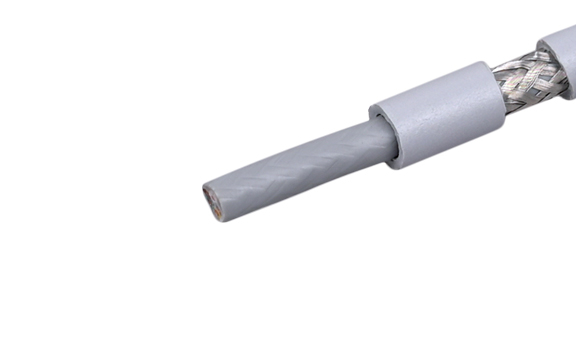

LONGFLEX® CHAIN FD 730 CP

Applications
Can be used as control cables in CNC machine tools, engraving machines, wood working machines, steel production and other automation equipment production lines in all kinds of machines. Intended for the place with serious electrical interference. It is very suitable for drag chain or frequent movement in greasy environment.
Availability:
Quantity:
LONGFLEX® CHAIN FD 730 CP
LONGFLEX® CHAIN FD 730 CP
LONGFLEX® CHAIN FD 730 CP
  • CHAIN FD 730 CP

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Mobile Application: -5°C~70°C

—Test Voltage

    4000V/min(AC)

—Insulation Resistance(20°C)

    ≥20MΩ.km

—Rated Voltage

    300/500V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 7.5D(D=cable diameter)

—Application of drag chain

    3~8 million times


CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 5

Insulation:

PVC

Insulation Color:

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Shielded:

Tinned copper braiding

Jacket:

PUR

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility Small bending radius

Good oil resistance, abrasion resistance and anti-hydrolysis

Good performance of resistance to external EMI
