LONGFLEX® CHAIN FD 437

Applications
Can be used as control cables in CNC machine tools, engraving machines, wood working machines and other automation equipment production lines in all kinds of machines. It is very suitable for drag chain or frequent movement.
Quantity:
  • CHAIN FD 437
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~90°C

    Mobile Application: -5°C~90°C

—Test Voltage

    4000V/5min(AC)

—Insulation Resistance(20°C)

    ≥20MΩ.km

—Rated Voltage

    300/500V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 7.5D(D=cable diameter)

—Application of drag chain

    3~8milliontimes

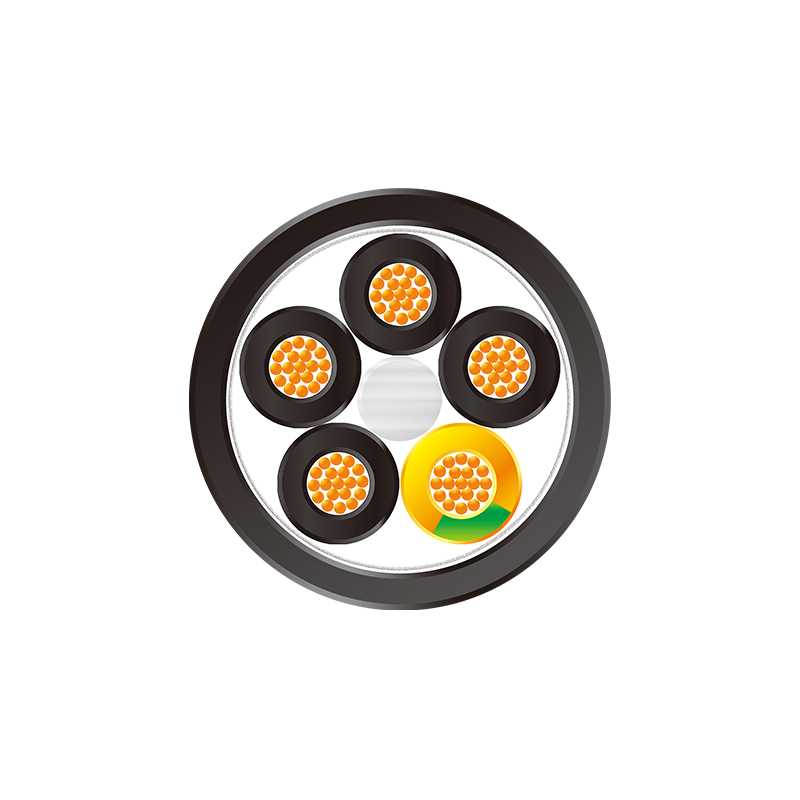

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class6

Insulation:

PVC

Insulation Color:

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Jacket:

PVC

Color:

Black(similar to RAL 9005)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance

Wider range of operation temperature
