LONGFLEX® CHAIN FD 431

Applications
Can be used as signal control cables in low voltage system of CNC machine tools, engraving machines, wood working machines and other automation equipment production lines in all kinds of machines. Intended for the place with serious electrical interference. It is very suitable for drag chain or frequent movement.

Quantity:
  • CHAIN FD 431
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Mobile Application: -5°C~70°C

—Test Voltage

    2000V/min(AC)

—Insulation Resistance(20°C)

    ≥10MΩ.km

—Rated Voltage

    300V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 7.5D(D=cable diameter)

—Technical Certification:

    UL2464

—Application of dragchain

    3~8milliontimes

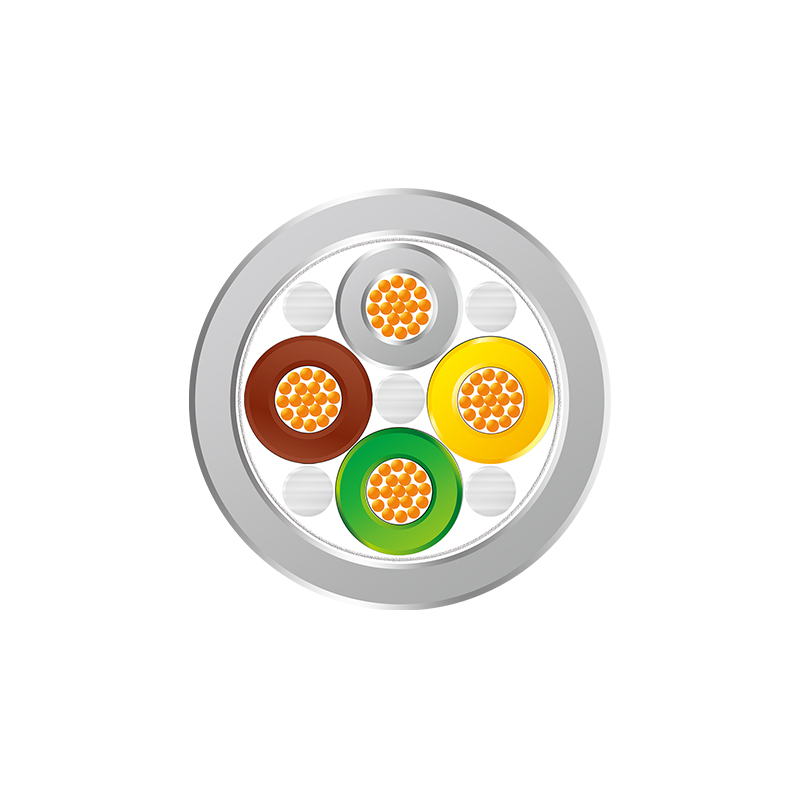

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

PVC

Insulation Color:

According to DIN 47100

Shielded:

Tinned copper braiding

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


PROPERTIES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance

Good performance of resistance to external EMI
