LONGFLEX® CHAIN FD 430 TP

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Mobile Application： -5℃~70℃

—Test Voltage

    2000V/5min（AC）

—Insulation Resistance(20°C)

    ≥10MΩ.km

—Rated Voltage

    300V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 7.5D(D=cable diameter)

—Technical Certification

    UL2464

—Application of drag chain

    3~8million times

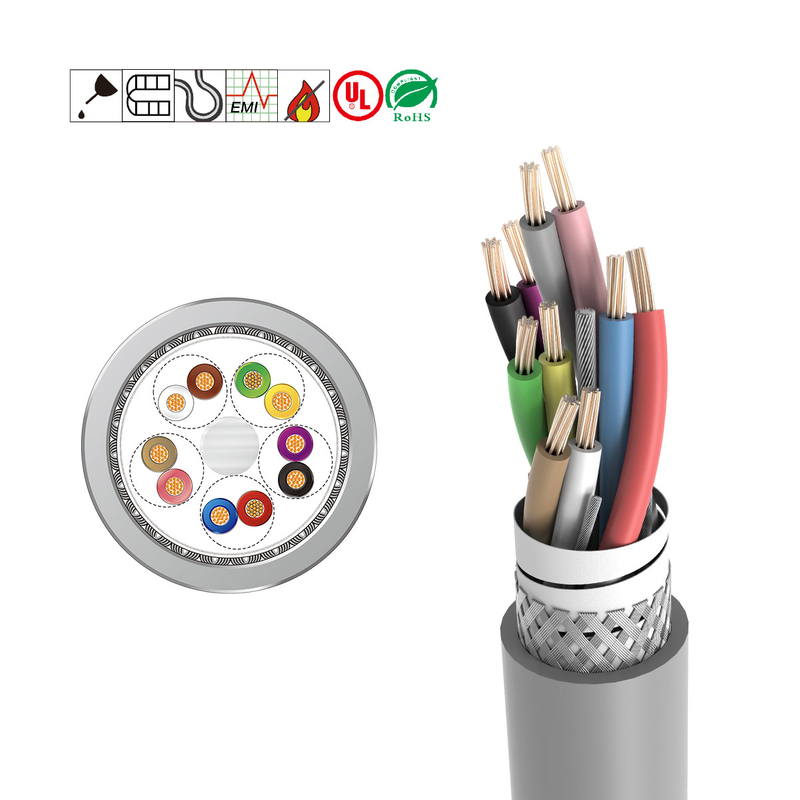

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

PVC

Insulation Color:

According to DIN 47100

Jacket:

PVC

Color:

Grey(simila to RAL 7001)

FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance, abrasion resistance and anti-hydrolysis

Good performance of resistance to external EMI
