CHAIN FD 437 CY
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~90°C
Mobile Application: -5°C~90°C
—Test Voltage
4000V/5min(AC)
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
—Minimum Bending Radius
Fixed Application: 4D(D=cable diameter)
Mobile Application: 7.5D(D=cable diameter)
—Application of drag chain
3~8milliontimes

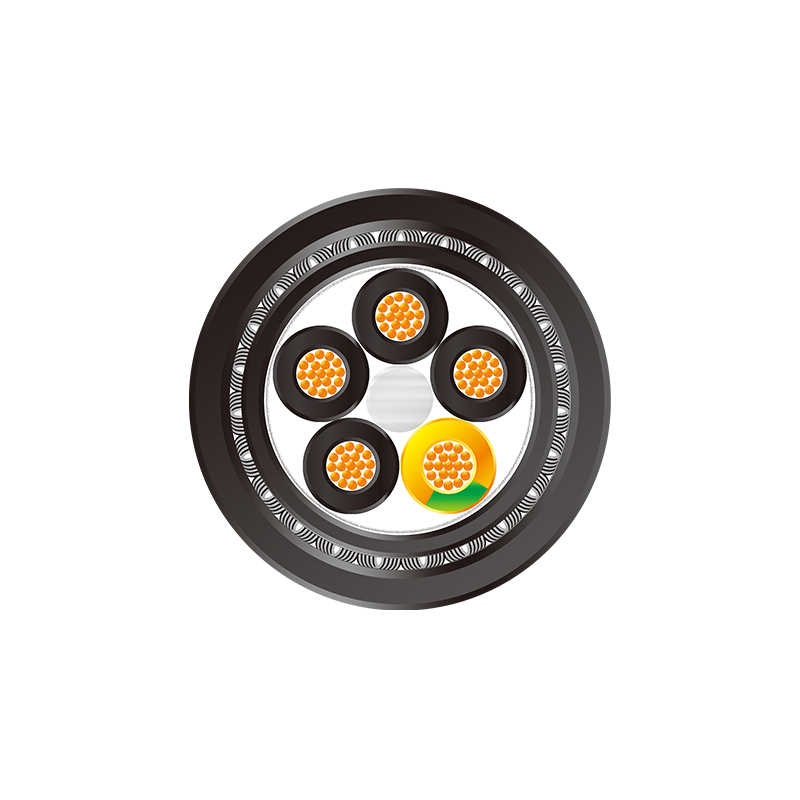

CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
PVC
Insulation Color:
According to DIN VDE 0293, black cores with white numbering, green-yellow conductor
InnerJacket:
PVC
Shielded:
Tinnedcopperbraiding
Jacket:
PVC
Color:
Black(similar to RAL 9005)
FEATURES
Flame resistance according to IEC60332-1
Good property of flexibility
Small bending radius
Good oil resistance
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application: -40°C~90°C
Mobile Application: -5°C~90°C
—Test Voltage
4000V/5min(AC)
—Insulation Resistance(20°C)
≥20MΩ.km
—Rated Voltage
300/500V
—Minimum Bending Radius
Fixed Application: 4D(D=cable diameter)
Mobile Application: 7.5D(D=cable diameter)
—Application of drag chain
3~8milliontimes
CABLE CONSTRUCTION
Conductor:
Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6
Insulation:
PVC
Insulation Color:
According to DIN VDE 0293, black cores with white numbering, green-yellow conductor
InnerJacket:
PVC
Shielded:
Tinnedcopperbraiding
Jacket:
PVC
Color:
Black(similar to RAL 9005)
FEATURES
Flame resistance according to IEC60332-1
Good property of flexibility
Small bending radius
Good oil resistance
