LONGFLEX® CHAIN 421 CY

Applications
Can be used as control cables in CNC machine tools, engraving machines, wood working machines and other automation equipment lines in all kinds of machines. Intended for the place with serious electrical interference. It is very suitable for drag chain or frequent movement.
Availability:
Quantity:
LONGFLEX® CHAIN 421 CY
LONGFLEX® CHAIN 421 CY
  • CHAIN 421 CY

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~80°C

    Mobile Application: -5°C~70°C

—Test Voltage

    2000V/5min(AC)

—Insulation Resistance(20°C)

    ≥10MΩ.km

—Rated Voltage

    300V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 10D(D=cable diameter)

—Technical Certification

    UL2464

—Application of drag chain

    1~3 million times

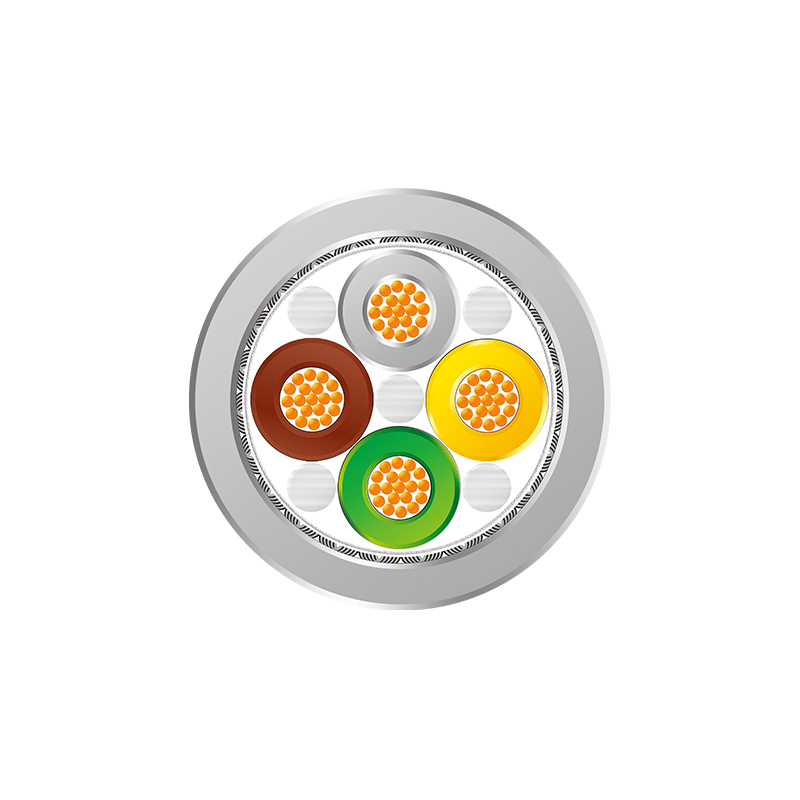

CABLE CONSTRUCTION

Conductor:

Fined stranded bare copper, according to IEC 60228/VDE 0295 class 5

Insulation:

PVC

Insulation Color:

According to DIN 47100

Shielded:

Tinned copper braiding

Jacket:

PVC

Color:

Grey(similar to RAL 7001)


FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good performance of resistance to external EMI
