LONGTRONIC® BUS CANBUS FD-TP

It can be used for a variety of bus systems, and is suitable for setting up networks in automation technology, integrated control and controller fields, such as textile industry, construction machinery industry and medical industry. Suitable for drag chain application or frequent mobile use.
Availability:
Quantity:
LONGTRONIC® BUS CANBUS FD-TP
LONGTRONIC® BUS CANBUS FD-TP
  • CANBUS FD-TP

  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range   Fixed Application:

PUR: -40°C ~ 80°C

Moved Application:

PUR: -20°C ~ 70°C

—Test Voltage 1500V / min (AC)

—Characteristic Impedance 120±15Ω@ 1MHz

—Rated Voltage   300V

—Minimum Bending Radius

Fixed Application:

10D (D = cable diameter)

Moved Application:

15D (D = cable diameter)

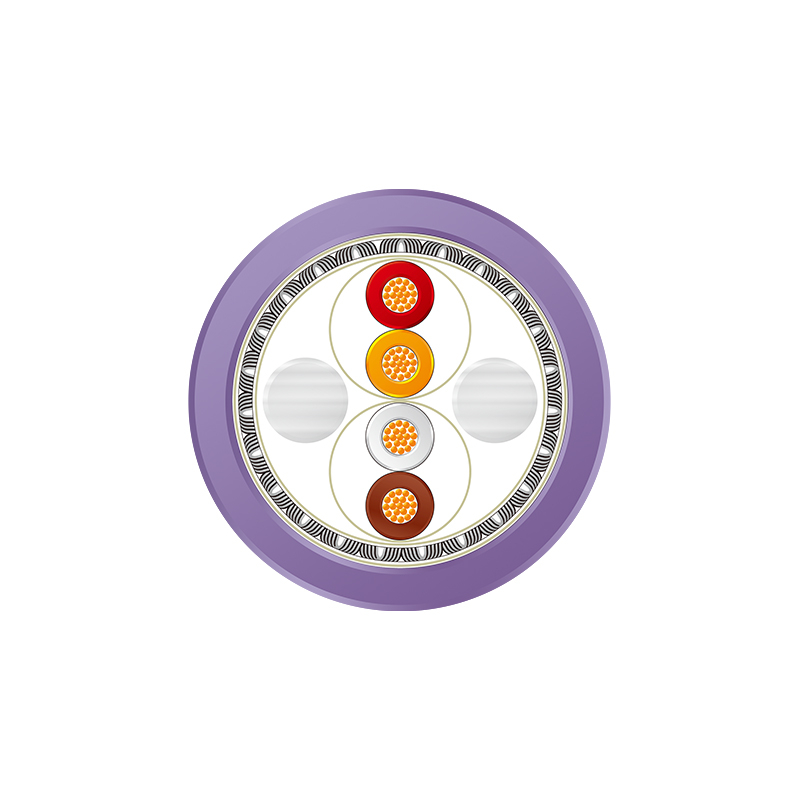

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper

Insulation:

Foamed PE

Color:

According to DIN47100

Shielded:

Tinned copper braiding

Jacket:

PUR

Color:

Purple (similartoRAL4001)


FEATURES

Flame resistance according to IEC60332-1

Have good performance of resistant to external EMI

Extremely resistant to oil,abrasion and hydrolysis

Halogen free
