LONGTRONIC® BUS CANBUS FD

It can be used for a variety of bus systems, and is suitable for setting up networks in automation technology, integrated control and controller fields, such as textile industry, construction machinery industry and medical industry. Suitable for drag chain application or frequent mobile use.
Availability:
Quantity:
  • CANBUS FD
  • zhaolong

CHARACTERISTIC

The flame retardancy meets the requirements of iec60332-1-2

It has good anti external electromagnetic interference ability

Especially resistant to oil, abrasion, hydrolysis and halogen

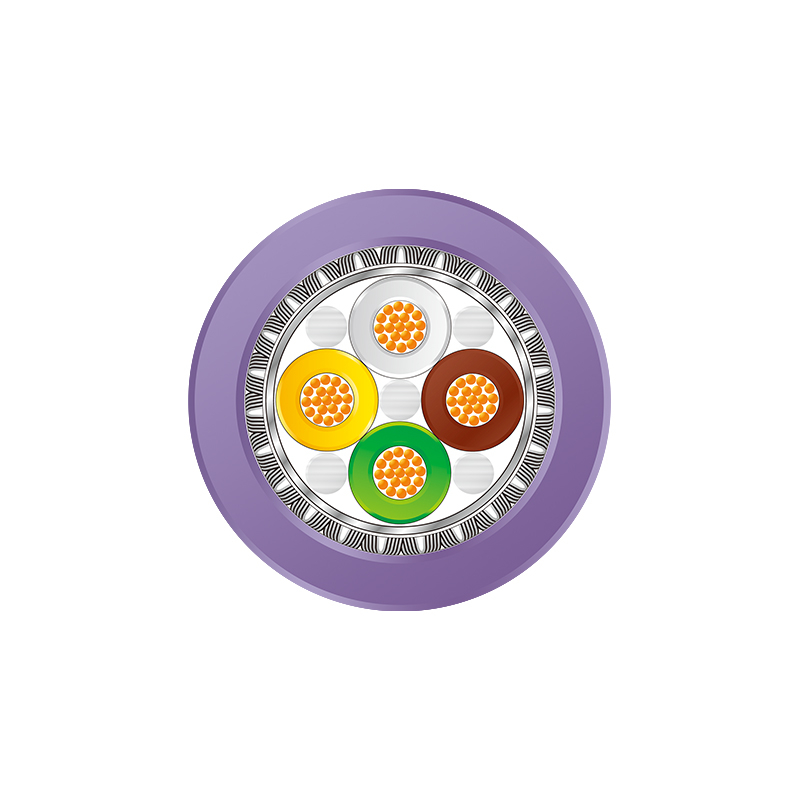

Star twisted structure with smaller cable outer diameter

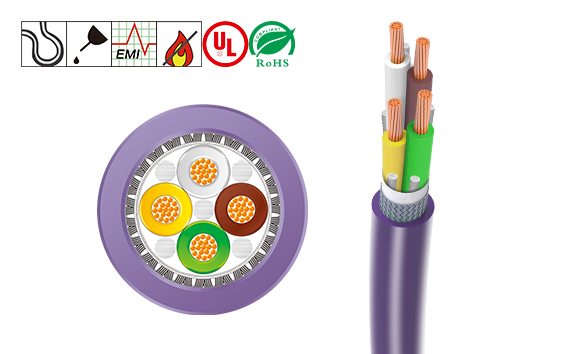

CABLE STRUCTURE

Conductor: fine bare copper stranded conductor

Insulation: foamed PE

Color: according to DIN 47100

Shield: tinned copper braid

Sheath: pur

Color: Purple (approximate ral 4001)


TECHNICAL PARAMETER

temperature range

Fixed application: - 40 ℃ ~ 80 ℃

Mobile application: - 5 ℃ ~ 60 ℃

Test voltage

1500V/min(AC)

characteristic impedance

120±15Ω@1MHz

Rated voltage

300V

Minimum bending radius

Fixed application: 10d (d = cable diameter)

Mobile application: 15d (d = cable diameter)
