LONGTRONIC® BUS CC-Link

TECHNICAL PARAMETERS

—Temperature Range

Fixed Application:

PVC: -20°C ~ 70°C

Occasional Movement:

PVC: -5°C ~ 60°C

—Test Voltage 2000V / min (AC)

—Characteristic Impedance 110±15Ω@ 1MHz

—Rated Voltage   300V

—Minimum Bending Radius

Fixed Application:

10D (D = cable diameter)

Occasional Movement:

15D (D = cable diameter)

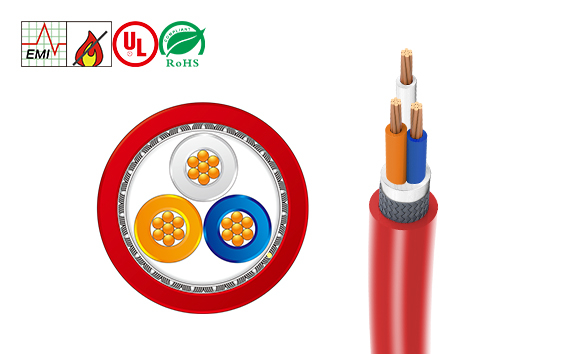

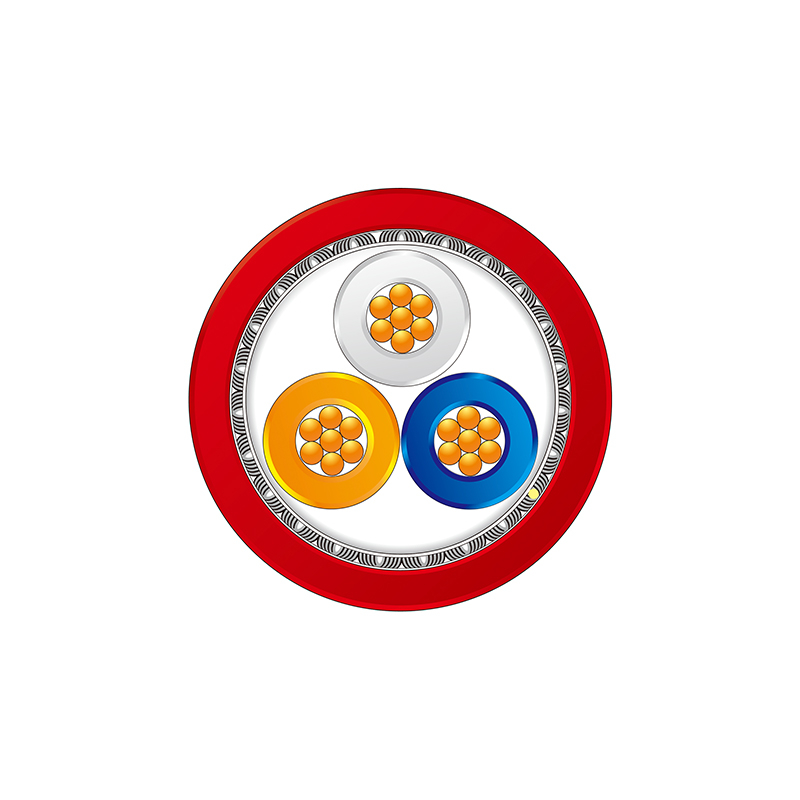

CABLE CONSTRUCTION

Conductor:

Stranded bare copper wire

Insulation:

Foamed PE

Color:

White, blue, yellow

Shielded:

AL / Mylar screen and tinned copper braiding

Jacket:

PVC

Color:

Red

FEATURES

Flame resistance according to IEC60332-1

Have good performance of resistant to external EMI

Steady performance of data transmission

Suitable for fixed installation or occasional movement
