TECHNICAL PARAMETERS
—Temperature Range
PVC: -20°C ~ 70°C
LSZH / PUR: -40°C ~ 80°C
—Test Voltage 2000V / min (AC)
—Characteristic Impedance 150±15Ω@ 3-20MHz
—Conductor DCR (20℃) ≤55Ω/ km
—Rated Voltage 300V
—Minimum Bending Radius Fixed Application:
10D (D = cable diameter)

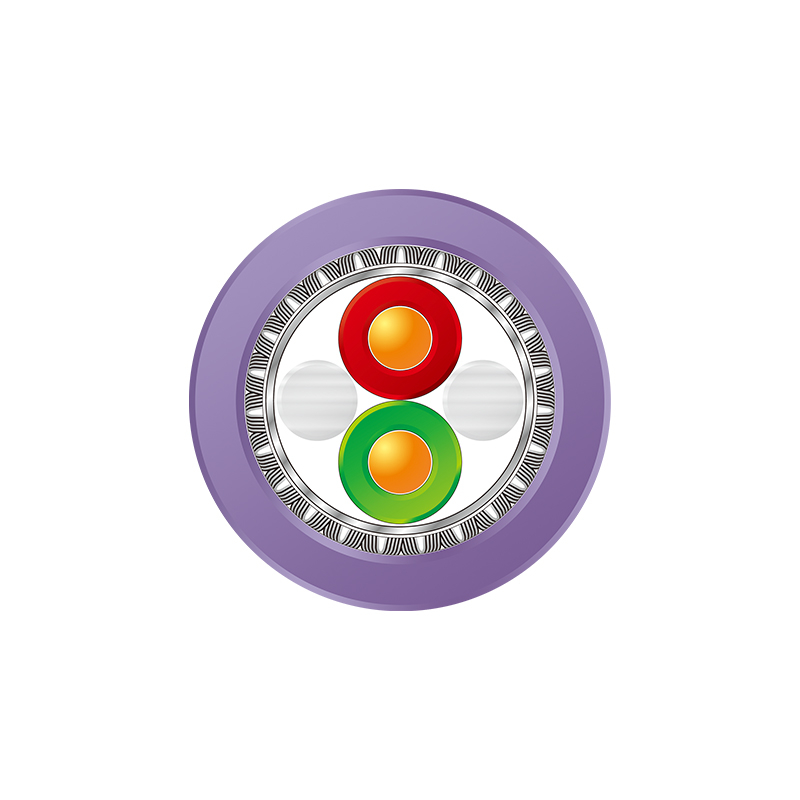

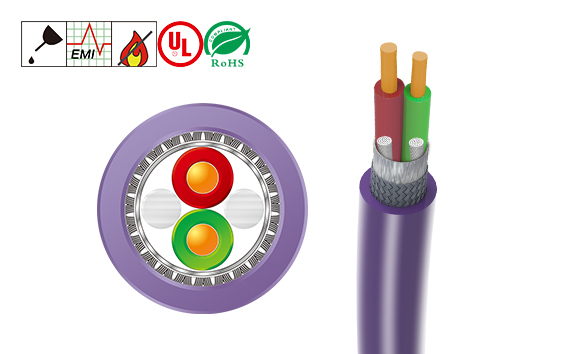

CABLE CONSTRUCTION
Conductor:
Solid bare copper wire
Insulation:
Foamed PE
Color:
Red, Green
Shield:
AL / Mylar wrapped and tinned copper braiding
Jacket:
PVC
LSZH
PUR
PE
Color:
Purple (similartoRAL4001), PE jacketisblack
FEATURES
Flame resistance according to IEC60332-1
Have good performance of resistant to external EMI
PE jacket cable is suitable for outdoor installation
PUR jacket cable is extremely resistant to oil, abrasion and hydrolysis
TECHNICAL PARAMETERS
—Temperature Range
PVC: -20°C ~ 70°C
LSZH / PUR: -40°C ~ 80°C
—Test Voltage 2000V / min (AC)
—Characteristic Impedance 150±15Ω@ 3-20MHz
—Conductor DCR (20℃) ≤55Ω/ km
—Rated Voltage 300V
—Minimum Bending Radius Fixed Application:
10D (D = cable diameter)
CABLE CONSTRUCTION
Conductor:
Solid bare copper wire
Insulation:
Foamed PE
Color:
Red, Green
Shield:
AL / Mylar wrapped and tinned copper braiding
Jacket:
PVC
LSZH
PUR
PE
Color:
Purple (similartoRAL4001), PE jacketisblack
FEATURES
Flame resistance according to IEC60332-1
Have good performance of resistant to external EMI
PE jacket cable is suitable for outdoor installation
PUR jacket cable is extremely resistant to oil, abrasion and hydrolysis
