RS-485
zhaolong
CHARACTERISTIC
The flame retardancy meets the requirements of iec60332-1-2
It has good anti external electromagnetic interference ability
Stable transmission performance, suitable for fixed installation or occasional movement

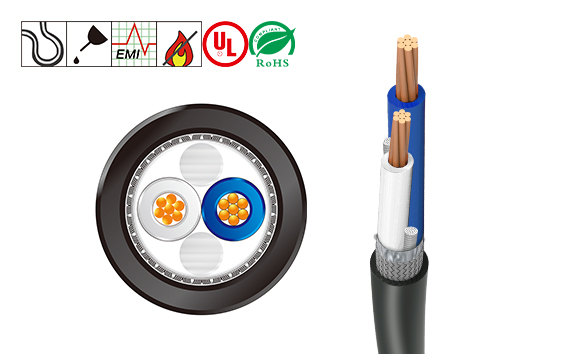

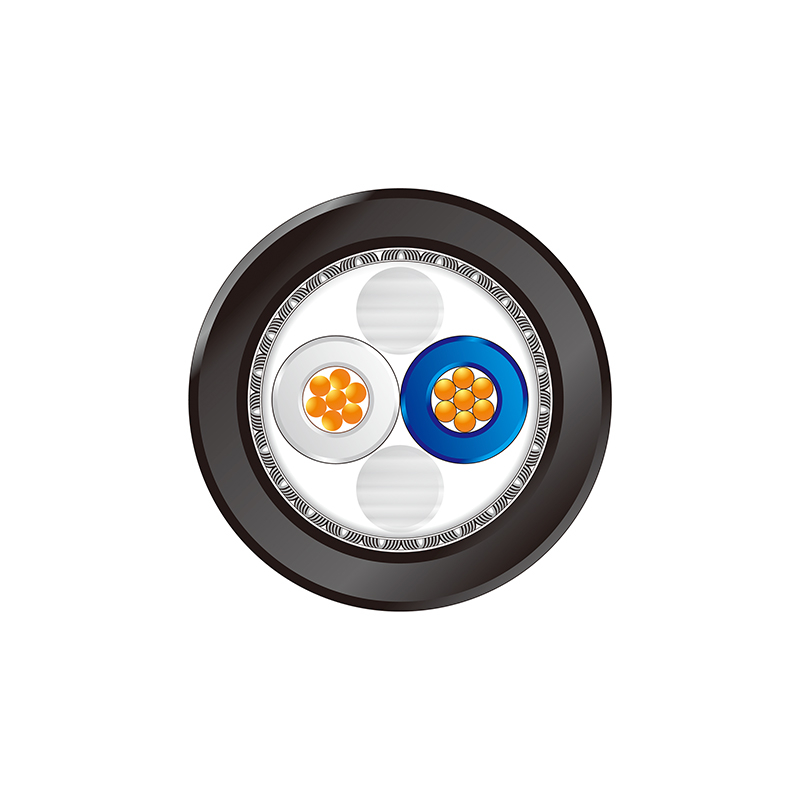

CABLE STRUCTURE
Conductor: stranded bare copper conductor
Insulation: foamed PE
Shielding: aluminum foil shielding and tinned copper braiding
Sheath: PVC
Color: Black
TECHNICAL PARAMETER
temperature range
Fixed application: - 20 ℃ ~ 70 ℃
Occasional movement: - 5 ℃ ~ 60 ℃
Test voltage
1500V/min(AC)
characteristic impedance
120±15Ω@1MHz
Minimum bending radius
Fixed application: 8D (d = cable diameter)
Occasional movement: 15d (d = cable diameter)
CHARACTERISTIC
The flame retardancy meets the requirements of iec60332-1-2
It has good anti external electromagnetic interference ability
Stable transmission performance, suitable for fixed installation or occasional movement
CABLE STRUCTURE
Conductor: stranded bare copper conductor
Insulation: foamed PE
Shielding: aluminum foil shielding and tinned copper braiding
Sheath: PVC
Color: Black
TECHNICAL PARAMETER
temperature range
Fixed application: - 20 ℃ ~ 70 ℃
Occasional movement: - 5 ℃ ~ 60 ℃
Test voltage
1500V/min(AC)
characteristic impedance
120±15Ω@1MHz
Minimum bending radius
Fixed application: 8D (d = cable diameter)
Occasional movement: 15d (d = cable diameter)
