TECHNICAL PARAMETERS
—Temperature Range Fixed Application:
PUR: -40°C ~ 80°C
Moved Application:
PUR: -20°C ~ 70°C
—Test Voltage 2000V / min (AC)
—Characteristic Impedance 110±15Ω@ 1MHz
—Rated Voltage 300V
—Minimum Bending Radius Fixed Application:
7.5D (D = cable diameter)
Moved Application:
15D (D = cable diameter)

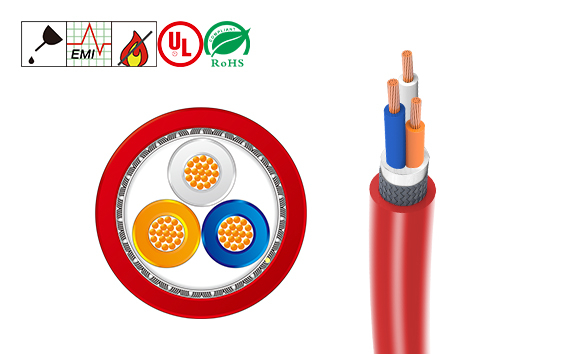

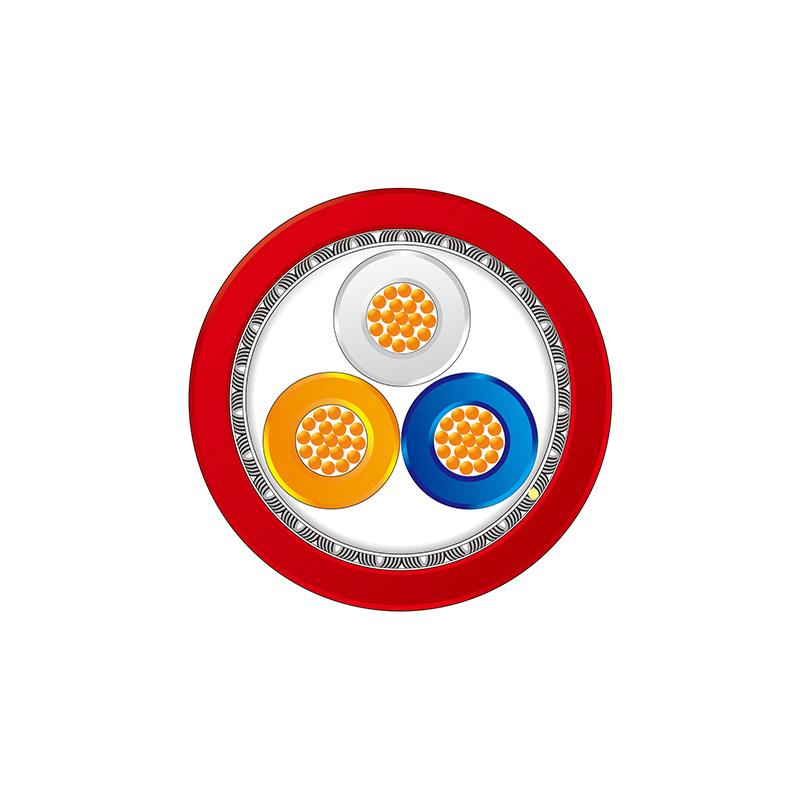

CABLE CONSTRUCTION
Conductor:
Stranded bare copper
Insulation:
Foamed PE
Color:
White, blue, yellow
Inner jacket:
FRNC
Shielded:
Tinned copperbraid
Jacket:
PUR
Color:
Red
FEATURES
Flame resistance according to IEC60332-1
Have good performance of resistant to external EMI
PUR jacket cable is extremely resistant to oil,abrasion and hydrolysis
Halogen free
