LONGTRONIC® BUS PROFIBUS-PA

CHARACTERISTIC

The flame retardancy meets the requirements of iec60332-1-2

Aluminum foil overall shield, with good anti external electromagnetic interference ability

LSZH sheath is halogen-free and low smoke

Economical cable with smaller outer diameter

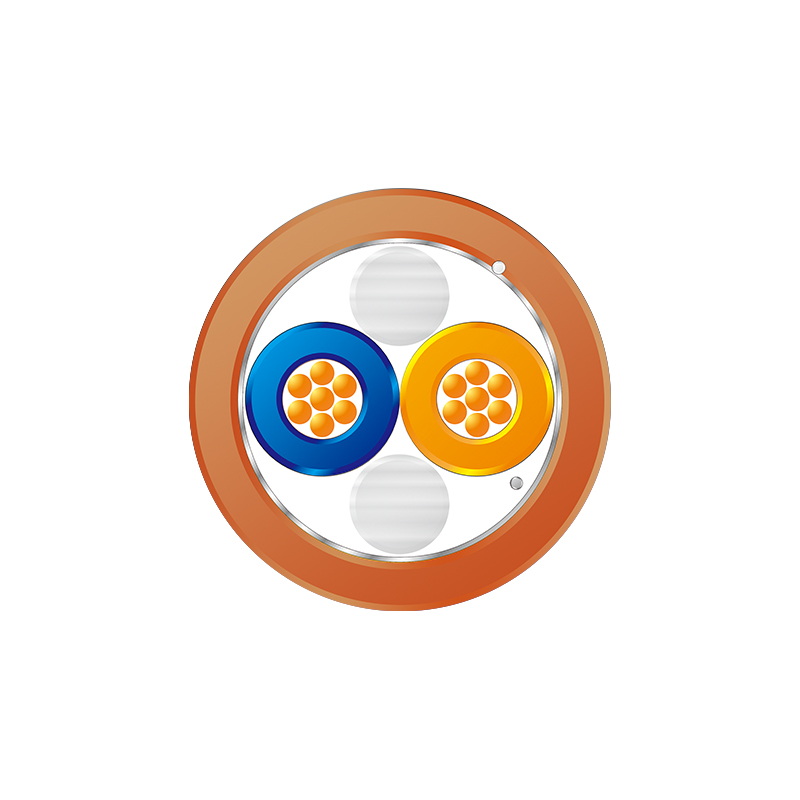

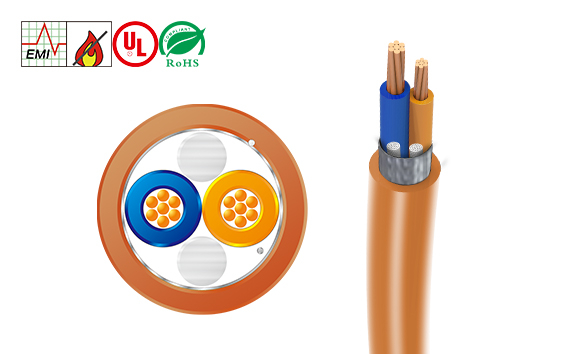

CABLE STRUCTURE

Conductor: solid or stranded conductor

Insulation: foamed PE

Color: blue, orange

Shielding: F / UTP: wrapped with aluminum foil

SF / UTP: aluminum foil wrapped and tinned copper braided

Sheath: PVC / LSZH

Color: Orange

TECHNICAL PARAMETER

temperature range

PVC： -20℃ ~70℃

LSZH： -40℃ ~80℃

Test voltage

2000V/min（AC）

characteristic impedance

100±20Ω@31.25kHz

Conductor DC resistance (20 ℃): ≤ 55 Ω / km

Rated voltage

300V

Minimum bending radius

Fixed application:

10d (d = cable diameter)
