TEMPERATURERANGE
Fixed Application:
PVC / PUR: -40°C ~ 80°C
Moved Application:
PVC: -5°C ~ 70°C PUR: -20°C ~ 70°C
—Test Voltage 2000V / min (AC)
—Characteristic Impedance 150±15Ω@ 3-20MHz
—Conductor DCR (20℃) ≤53Ω/ km —Rated voltage 300V
—Minimum Bending Radius
Fixed Application:
10D (D = cable diameter)
Moved Application:
15D (D = cable diameter)

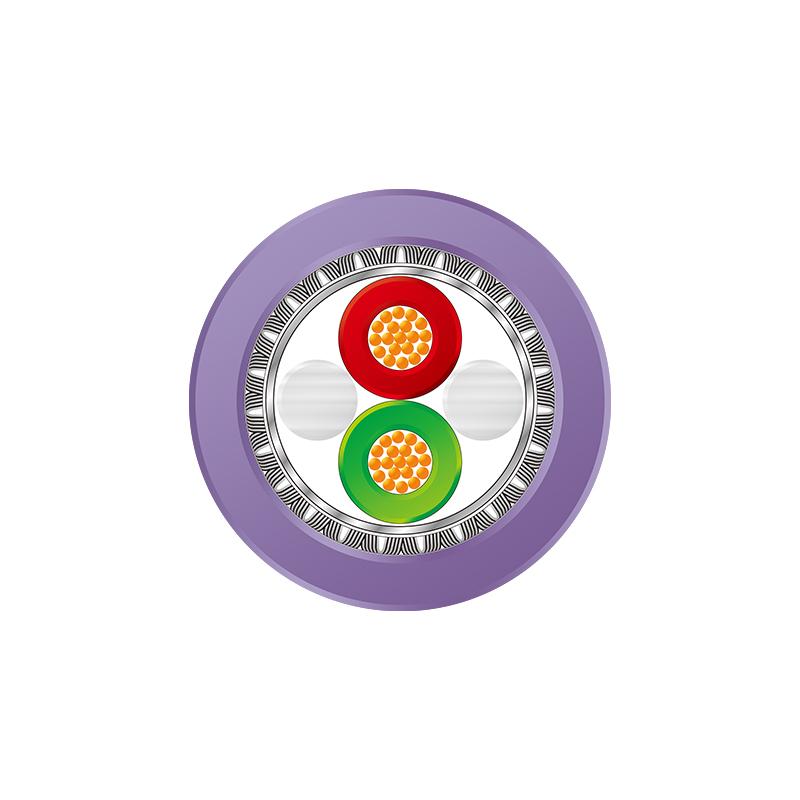

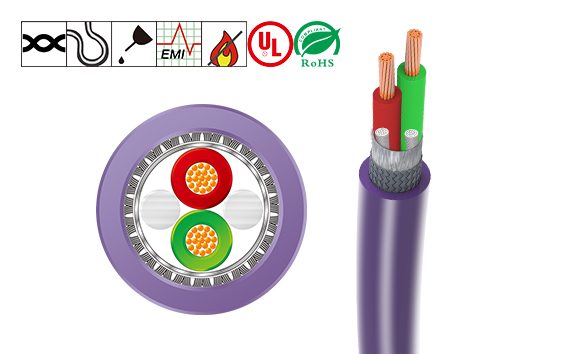

CABLE CONSTRUCTION
Conductor:
Stranded bare copper wire
Insulation:
Foamed PE
Color:
Red, Green
Shielded:
AL / Mylar wrapped and tinned copper braiding
Jacket:
PVC
PUR
Color:
Purple (similar to RAL4001)
FEATURES
Flame resistance according to IEC60332-1
Have good performance of resistance to external EMI
Good property of flexibility Small bending radius
PUR jacket cable is extremely resistant to oil, abrasion and hydrolysis
TEMPERATURERANGE
Fixed Application:
PVC / PUR: -40°C ~ 80°C
Moved Application:
PVC: -5°C ~ 70°C PUR: -20°C ~ 70°C
—Test Voltage 2000V / min (AC)
—Characteristic Impedance 150±15Ω@ 3-20MHz
—Conductor DCR (20℃) ≤53Ω/ km —Rated voltage 300V
—Minimum Bending Radius
Fixed Application:
10D (D = cable diameter)
Moved Application:
15D (D = cable diameter)
CABLE CONSTRUCTION
Conductor:
Stranded bare copper wire
Insulation:
Foamed PE
Color:
Red, Green
Shielded:
AL / Mylar wrapped and tinned copper braiding
Jacket:
PVC
PUR
Color:
Purple (similar to RAL4001)
FEATURES
Flame resistance according to IEC60332-1
Have good performance of resistance to external EMI
Good property of flexibility Small bending radius
PUR jacket cable is extremely resistant to oil, abrasion and hydrolysis
